(B.60.A.95.90[3]) - OIL DIPSTICK & TUBE - TIER 3 - PIN HAJ106401 & AFTER

Запчасти Case IH AFX8010 (B.60.A.95.90[3]) - OIL DIPSTICK & TUBE - TIER 3 - PIN HAJ106401 & AFTER B - Power Production

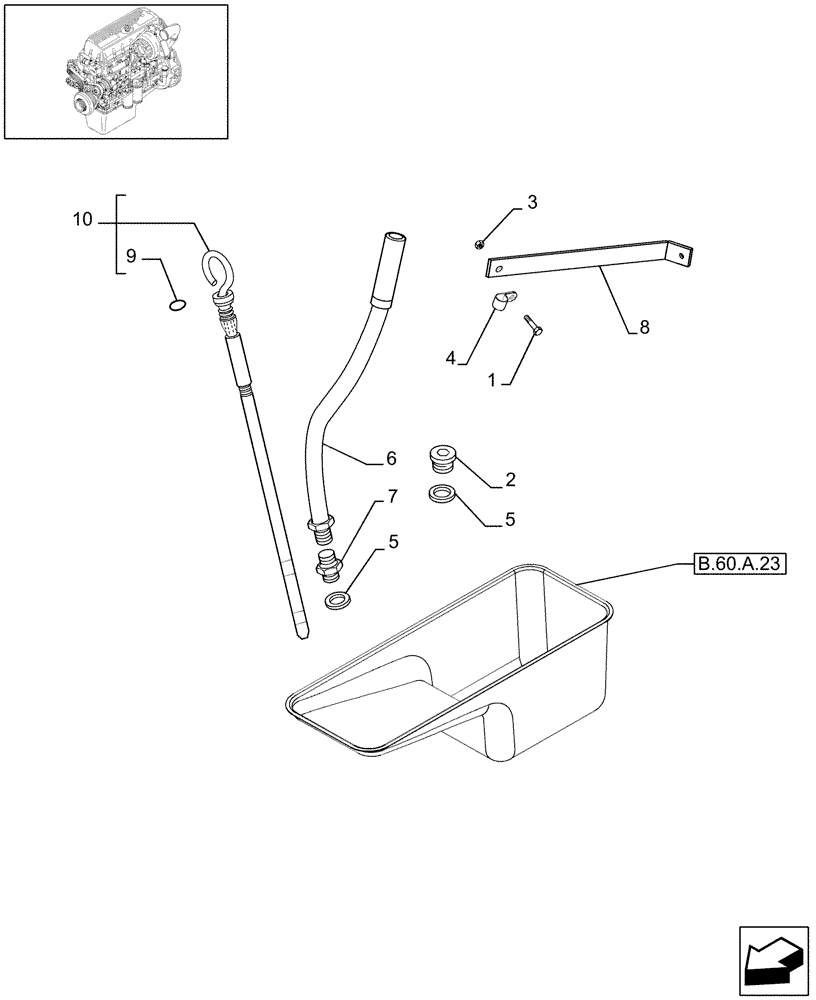

Схема запчастей Case IH AFX8010 - (B.60.A.95.90[3]) - OIL DIPSTICK & TUBE - TIER 3 - PIN HAJ106401 & AFTER B - Power Production
8
2
3
5
b.60.a.23
5
6
1
7
10
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

2шт.

2

16992511

PLUG

2шт.

3

17044721

NUT

1шт.

4

17316699

CLAMP

1шт.

5

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

6

504117963

TUBE

Dipstick

1шт.

7

504023175

HYD CONNECTOR

1шт.

8

504066745

BRACKET

1шт.

9

504027969

SEALING RING

SEALRING

1шт.

10

504121045

DIPSTICK

1шт.

Выбрано товаров: 10
