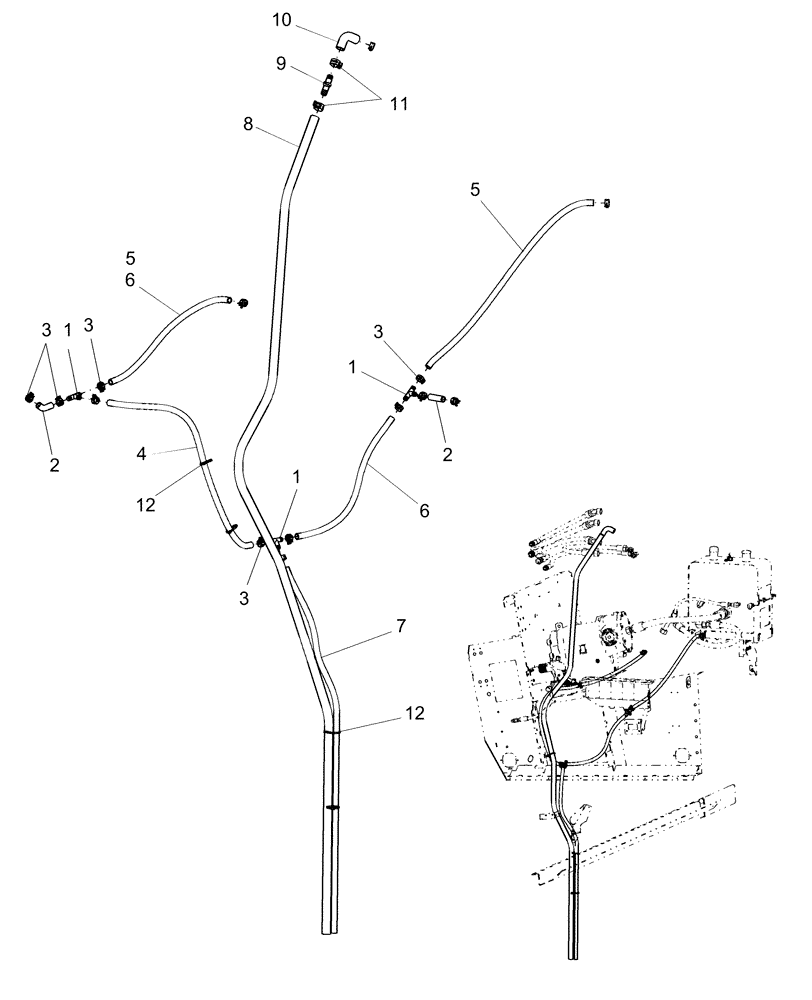

Запчасти Case IH AFX8010 (B.60.A.36[1]) - OIL DRAIN LINES B - Power Production

1

87107102

TEE,5/8" Barb

3шт.

2

PL

PROCURE LOCALLY

Hose, Drain - From Valves on Rotor Gearbox and PTO Gearbox Oil Pan

2шт.

3

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

13шт.

4

PL

PROCURE LOCALLY

Hose, Drain

1шт.

5

PL

PROCURE LOCALLY

Hose, Drain - From Valve on Hydraulic Oil Reservoir

1шт.

6

PL

PROCURE LOCALLY

Hose, Drain - (1) From Valve on Engine Oil Pan

2шт.

7

PL

PROCURE LOCALLY

Hose, Drain

1шт.

8

87107435

HOSE,25.40 mm ID x 3350 mm

Drain

1шт.

9

87107557

FITTING

1шт.

10

84334134

HOSE,25mm ID x 69mm OAL

Elbow - From Breather Port on Engine

1шт.

11

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.
