Запчасти Case IH AFX8010 (B.60.A.32[4]) - KIT, OIL COOLER B - Power Production

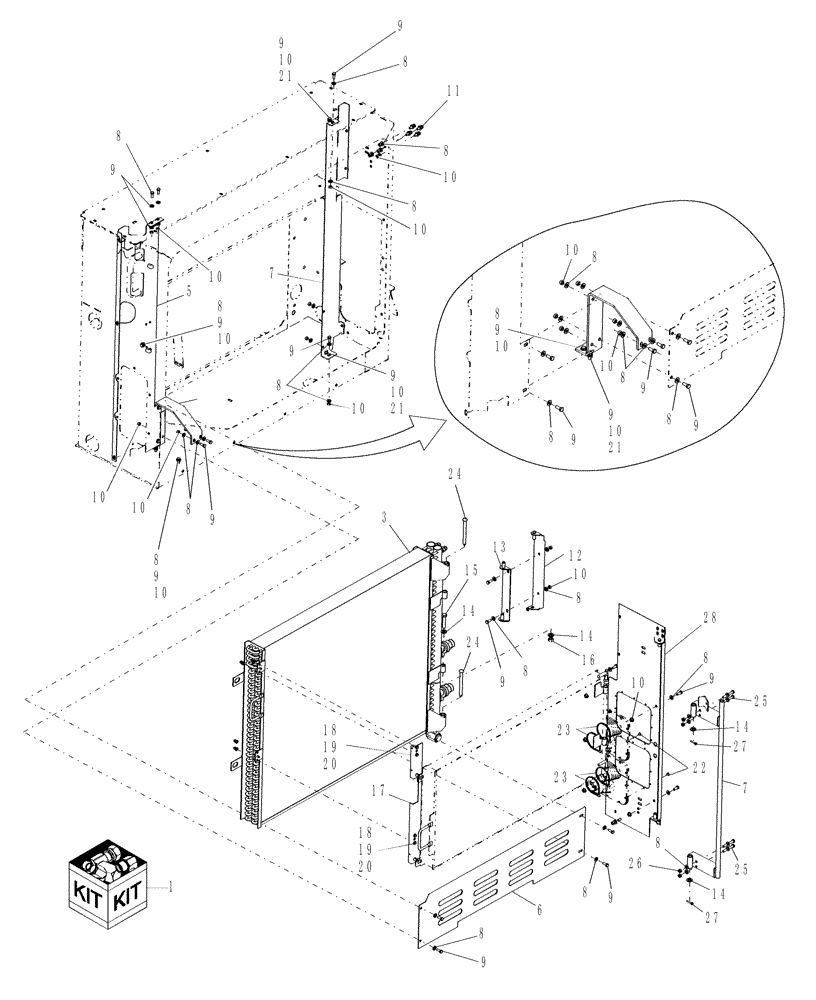

Схема запчастей Case IH AFX8010 - (B.60.A.32[4]) - KIT, OIL COOLER B - Power Production
26
8
9
19
10
1
8
8
3
9
16
9
9
8
25
10
10
9
10
10
10
23
22
18
28
8
9
7
10
17
8
9
8
9
13
20
10
10
9
8
9
14
15
14
10
12
27
9
9
24
5
8
10
18
8
8
8
14
24
8
9
10
23
9
8
10
14
21
20
10
10
10
8
9
8
8
9
27
7
19
8
6
11
8
21
25
21
9

Артикул

Название

Примечание

Количество

1

87627812

PACKAGE,SERVICE

Kit, Oil Cooler; Includes: Ref.s 2 Thru 28

1шт.

2

87625984

HINGE

Hinge

1шт.

3

87106640

COOLER, OIL

1шт.

4

87626162

BRACKET

Bracket

1шт.

5

87625988

PANEL ASSY.

Panel

1шт.

6

87106737

PANEL

1шт.

7

87626160

PANEL

Panel

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

62шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

26шт.

10

9706690

NUT,M8 x 1.25, Cl 8

30шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

87630960

SUPPORT ASSY.

Support

1шт.

13

87630963

BRACKET

Bracket, Condensor

1шт.

14

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

15

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

16

9706685

NUT,M12 x 1.75, Cl 8

1шт.

17

87630957

PLATE ASSY.

Plate

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

19

9706755

NUT,M6, Cl 8

4шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

22

87107418

FASTENER

24шт.

23

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

24

87019656

HEADED PIN,1/2" OD x 5" L

2шт.

25

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

27

394818

COTTER PIN,M5 x 25

2шт.

28

87625981

PANEL ASSY.

Panel

1шт.

Выбрано товаров: 28
