(A.10.A.18[3]) - VALVE, FEEDER STACK - WITH LATERAL TILT

Запчасти Case IH AFX8010 (A.10.A.18[3]) - VALVE, FEEDER STACK - WITH LATERAL TILT A - Distribution Systems

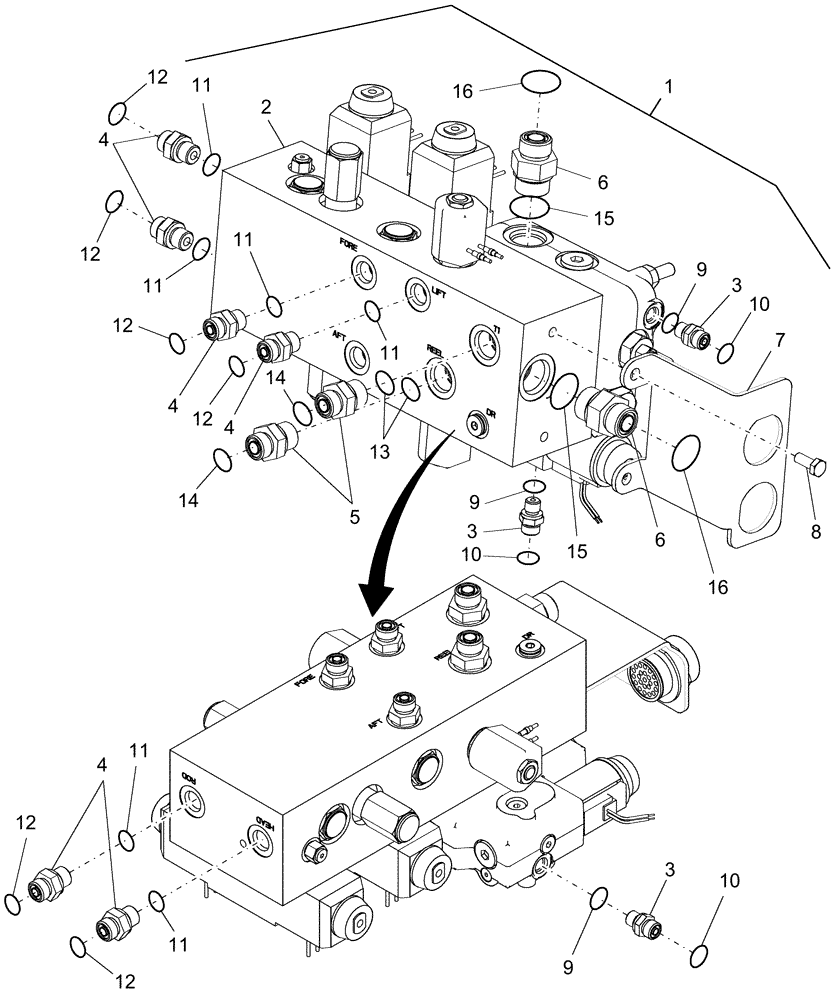

Схема запчастей Case IH AFX8010 - (A.10.A.18[3]) - VALVE, FEEDER STACK - WITH LATERAL TILT A - Distribution Systems
14
14
7
12
10
4
4
12
10
12
11
12
1
11
9
6
2
12
16
11
3
15
9
9
4
16
5
11
11
10
12
4
3
6
3
8
13
11
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87109743

HYDRAULIC VALVE

Assy, Feeder Stack - With Lateral Tilt - Includes: Ref. 2 - 9

1шт.

2

87109742

HYDRAULIC VALVE

Fig. A.10.A.18 (3A)

1шт.

3

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

3шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

6шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

6

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

7

86997309

BRACKET

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 16
