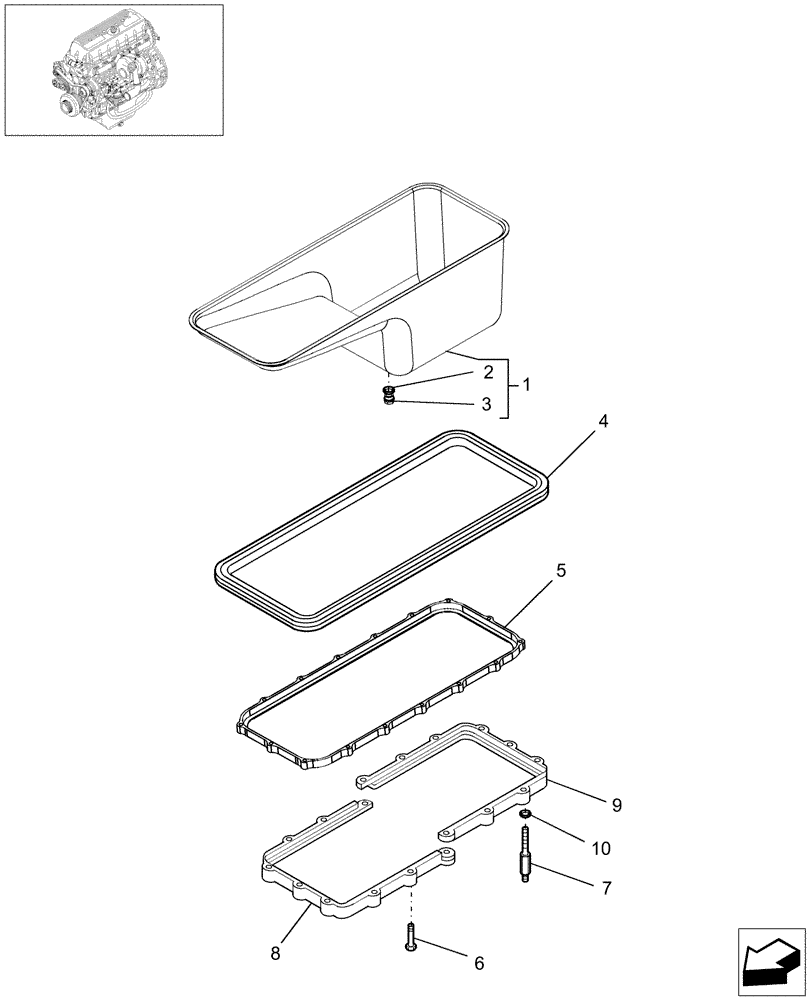

Запчасти Case IH AFX8010 (B.60.A.23) - OIL SUMP & RELATED PARTS (504079751) B - Power Production

1

500336615

ENGINE OIL PAN

Assy

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22 mm

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

4

504028001

GASKET

1шт.

5

99468496

Spacer

1шт.

6

16587524

SCREW,M10 x 45mm

M10 x 45

1шт.

7

504005577

PROP

1шт.

8

99468498

SPACER

, Start Serial: HAJ106401

1шт.

9

99468497

SPACER

, Start Serial: HAJ106401

1шт.

10

17095024

WASHER

Tier 3, Start Serial: HAJ106401

1шт.
