(B.60.A.20) - PUMP, ENGINE OIL & RELATED PARTS (99469333)

Запчасти Case IH AFX8010 (B.60.A.20) - PUMP, ENGINE OIL & RELATED PARTS (99469333) B - Power Production

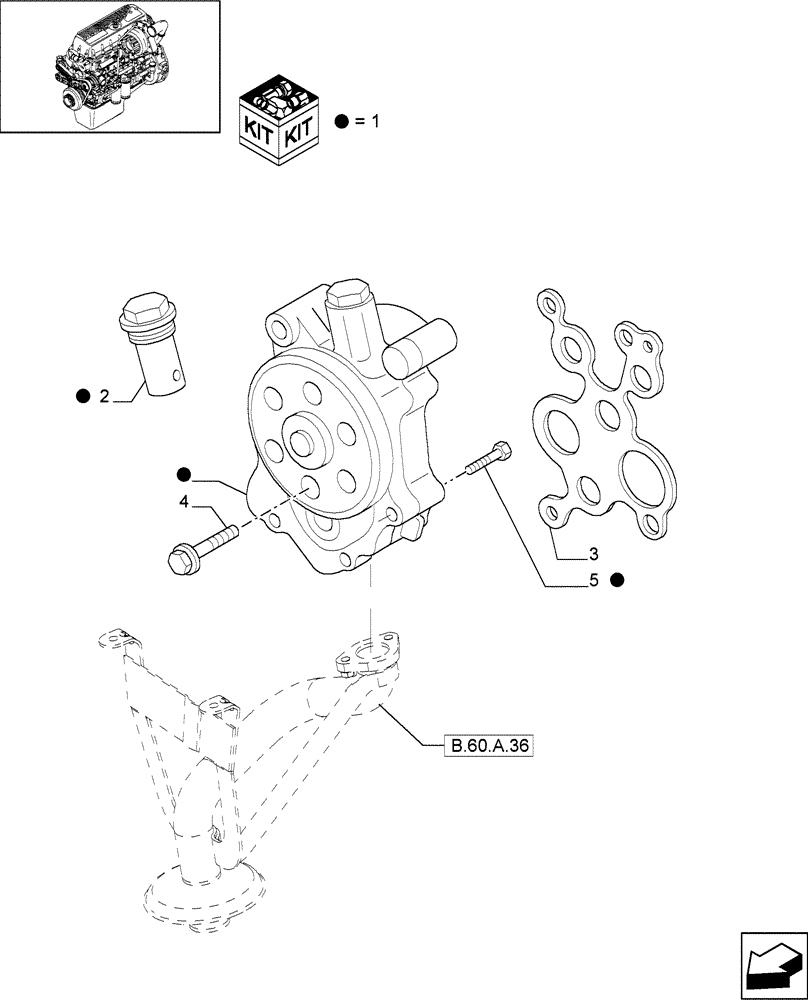

Схема запчастей Case IH AFX8010 - (B.60.A.20) - PUMP, ENGINE OIL & RELATED PARTS (99469333) B - Power Production
5
1
3
2
4
b.60.a.36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

99468458

ENGINE OIL PUMP

1шт.

2

500359679

SAFETY VALVE

1шт.

3

99452273

GASKET

1шт.

4

16592424

SCREW,M8 x 65mm

M8 x 65

3шт.

4

16586624

SCREW,M8 x 35mm

M8 x 35

1шт.

4

16586625

BOLT,M8 x 35mm

Tier 3, Start Serial: HAJ106401

1шт.

5

16690924

SCREW,M8 x 40mm

M8 x 40

3шт.

Выбрано товаров: 7
