Запчасти Case IH AFX8010 (B.50.A.36[1]) - COOLANT LINES B - Power Production

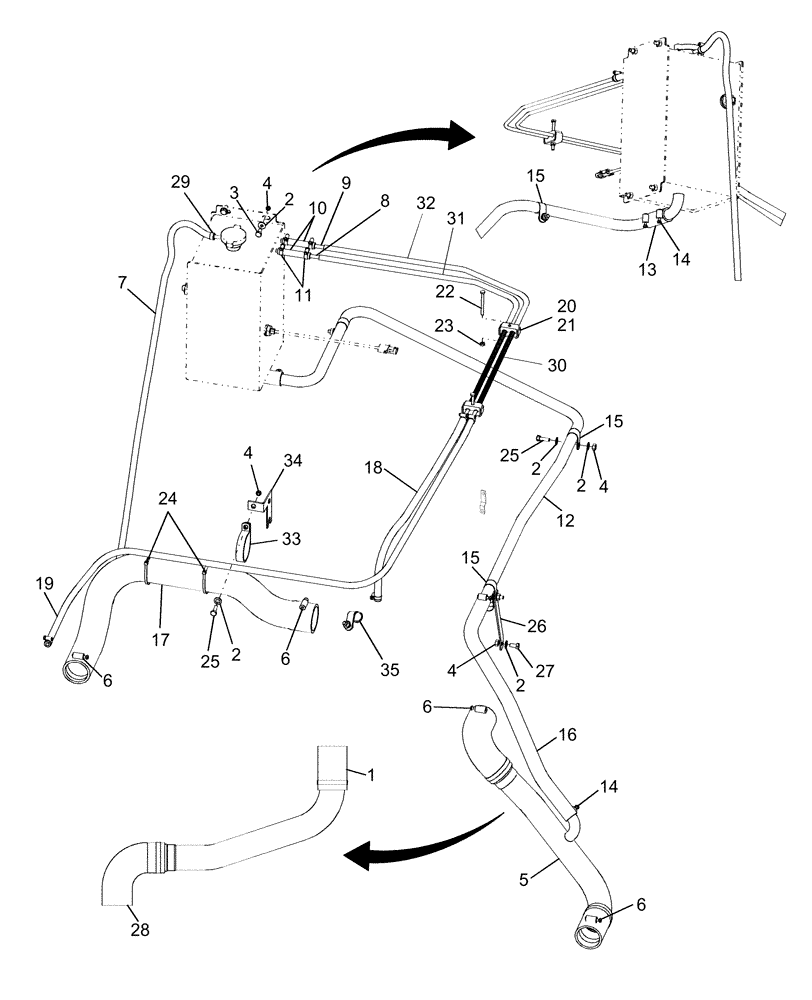

Схема запчастей Case IH AFX8010 - (B.50.A.36[1]) - COOLANT LINES B - Power Production
2
33
14
18
23
8
32
2
19
20
15
4
16
10
6
2
17
22
6
15
6
12
35
3
29
26
2
7
25
34
11
30
21
27
24
6
25
15
4
9
31
2
5
1
28
4
13
4
14

Артикул

Название

Примечание

Количество

1

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

86976405

TUBE

Includes Ref. 1 & 28

1шт.

5

87284665

TUBE

Includes Ref. 1 & 28, Start Serial: HAJ105758

1шт.

6

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

Same as 86633352

4шт.

7

PL

PROCURE LOCALLY

Hose

1шт.

8

87109017

HYD TUBE,7.94 mm OD

Deaeration Vent

1шт.

9

87109018

HYD TUBE,7.94 mm OD

Deaeration Vent

1шт.

10

87109023

HOSE,7.90 mm ID x 80 mm, SAE 30R2 TYPE 1

Deaeration Connection

2шт.

11

913888

HOSE CLAMP

Hose

9шт.

12

87281668

HYD TUBE,25.40 mm OD

Deaeration - Replaced 87109214

1шт.

13

87109022

HOSE

Deaeration Supply

1шт.

14

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

87109215

HOSE,25.40 mm ID x 726 mm, SAE 30R2 TYPE 1

Deaeration Supply

1шт.

17

87109073

RADIATOR HOSE,57.2 - 60 mm ID, 526.00 mm, SAE J20, 20R4 CLASS D1

1шт.

17

87284666

RADIATOR HOSE,418.10 mm

, Start Serial: HAJ105758

1шт.

18

87109074

HOSE,9.50 mm ID x 600 mm, SAE 30R2 TYPE 1

Deaeration Vent

1шт.

19

87109075

HOSE,7.90 mm ID x 1600 mm, SAE 30R2 TYPE 1

Deaeration Vent

1шт.

19

87284698

HOSE,7.90 mm ID x 1045 mm

Deaeration Vent, Start Serial: HAJ105758

1шт.

20

430357

CLAMP

4шт.

21

431941

SUPPORT

2шт.

22

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

23

353308

NUT,M6 x 1.0, Cl 8

2шт.

24

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

26

87281676

BRACKET

Hose - Replaced 87109225

1шт.

27

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

28

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

Elbow, Engine Coolant

1шт.

29

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

30

87283961

INSULATOR

2шт.

31

87283962

INSULATOR

1шт.

32

87283963

INSULATOR

1шт.

33

87302918

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

, Start Serial: HAJ105758

1шт.

34

87284821

BRACKET

, Start Serial: HAJ105758

1шт.

35

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: HAJ105758

1шт.

Выбрано товаров: 38
