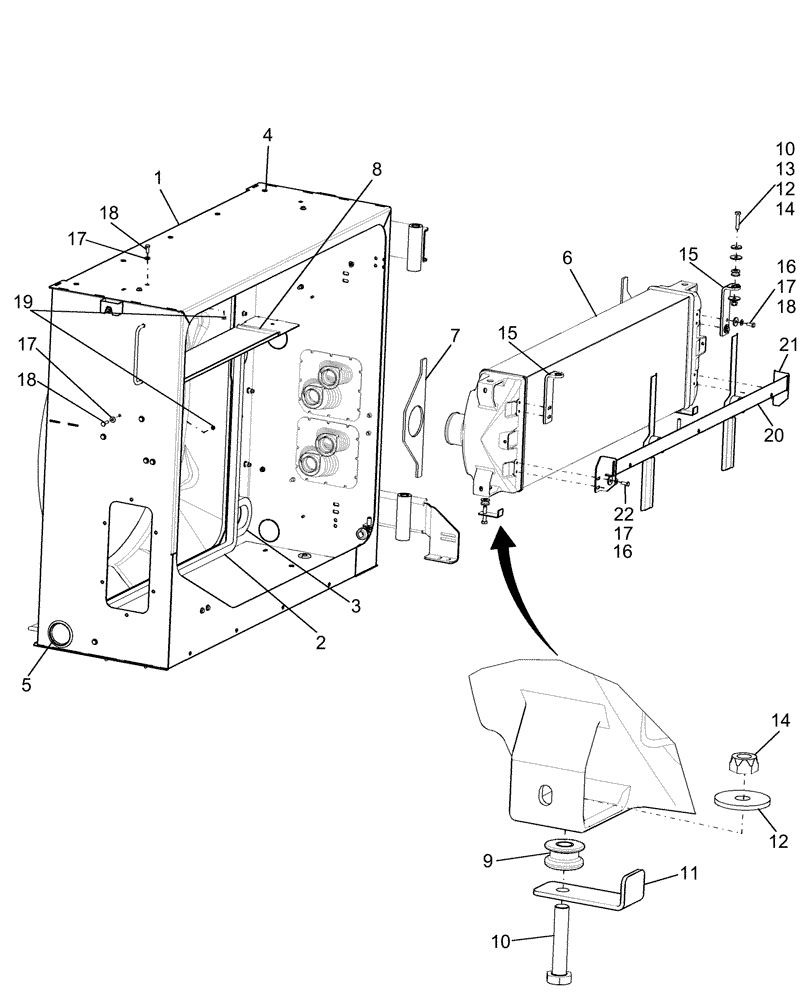

Запчасти Case IH AFX8010 (B.50.A.32) - FRAME & INTERCOOLER B - Power Production

1

87284165

FRAME

Cooling Box, includes decals

1шт.

2

87000002

SEAL

1шт.

3

87105917

SEALANT

2шт.

4

86976590

INSERT

8mm Well

5шт.

5

87000778

PLUG,89mm OD

1шт.

6

86975928

INTERCOOLER

1шт.

7

87106629

SEAL

Triangle Shaped, 102mm ID, 6.35mm Thk, Used With Original AFX8010 Intercooler

2шт.

7

87510751

SEAL

12.7mm X 15mm X 425mm L, Used With Updated Intercooler

2шт.

8

87106630

SEAL

2шт.

9

86976579

ISOLATOR,28.07mm OD x 25.91mm L

Center Bonded Isomount

4шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

11

87106857

BRACKET

Isomount Spacer

2шт.

12

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

6шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

15

86976583

BRACKET

Support

2шт.

16

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

19

9706690

NUT,M8 x 1.25, Cl 8

5шт.

20

87000890

BRACKET

Supporting, Chaff Wiper

1шт.

21

87109308

BRACKET

Supporting, Wiper

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
