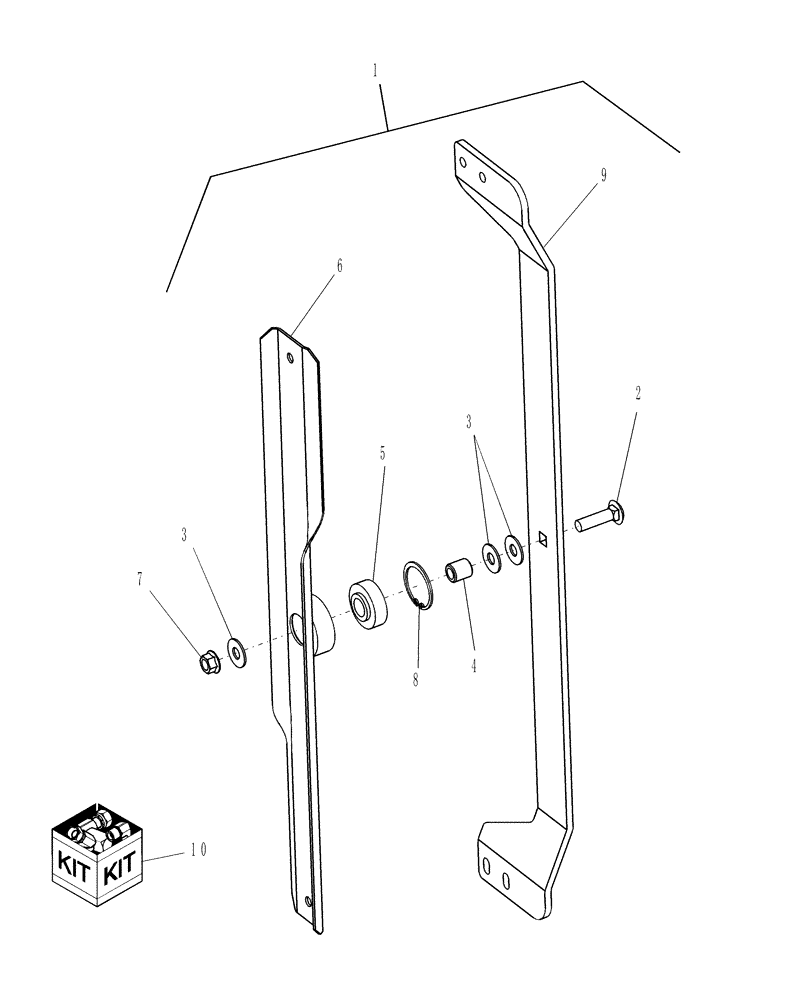

Запчасти Case IH AFX8010 (B.50.A.32[10]) - CHAFF WIPER B - Power Production

1

87579726

ARM ASSY.

Includes: Ref.s 2 Thru 9

1шт.

2

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

3

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

4

87404683

BUSHING

1шт.

5

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

6

87579723

BLADE

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

100-21156

SNAP RING,1.562", Int, #156

1шт.

9

87579720

BRACKET

1шт.

10

87584233

SERVICE KIT

Includes: Ref. 1 (2), Bolt 120104 (8), & Lock Washer 322358 (8)

1шт.
