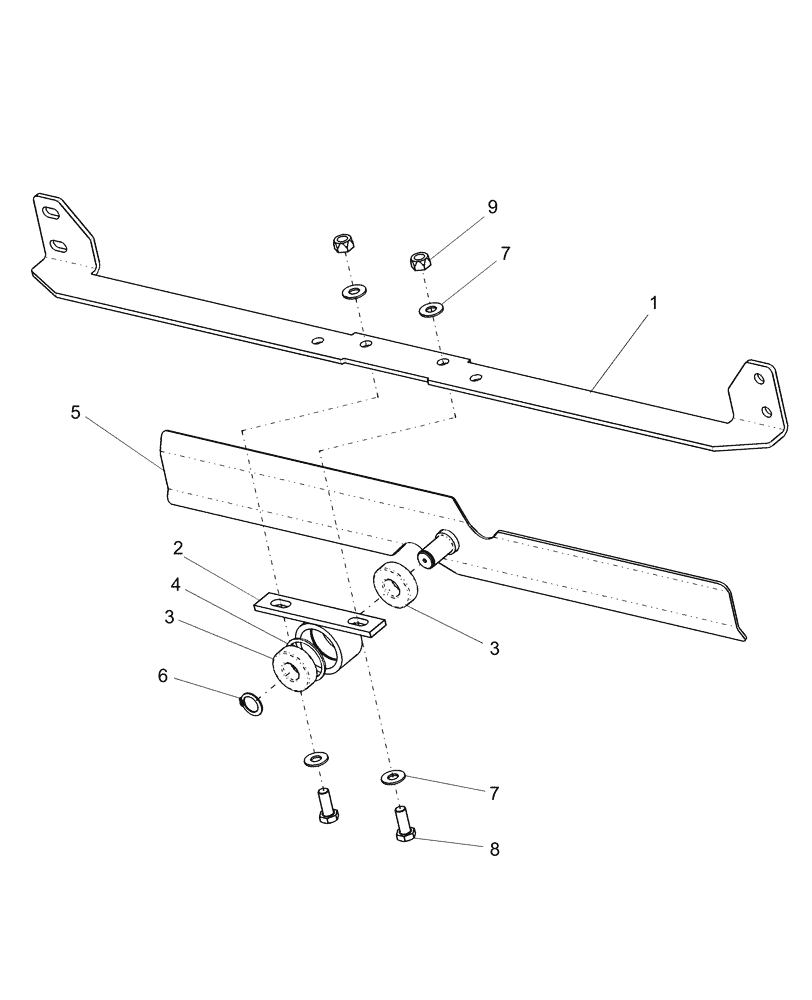

Запчасти Case IH AFX8010 (B.50.A.32[09]) - CHAFF WIPER B - Power Production

1

87360617

SUPPORT

Bearing

1шт.

2

604599

SUPPORT

1шт.

3

308803

BALL BEARING

2шт.

4

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

5

87284271

BLADE

Wiper

1шт.

6

NNA301615

SNAP RING

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.
