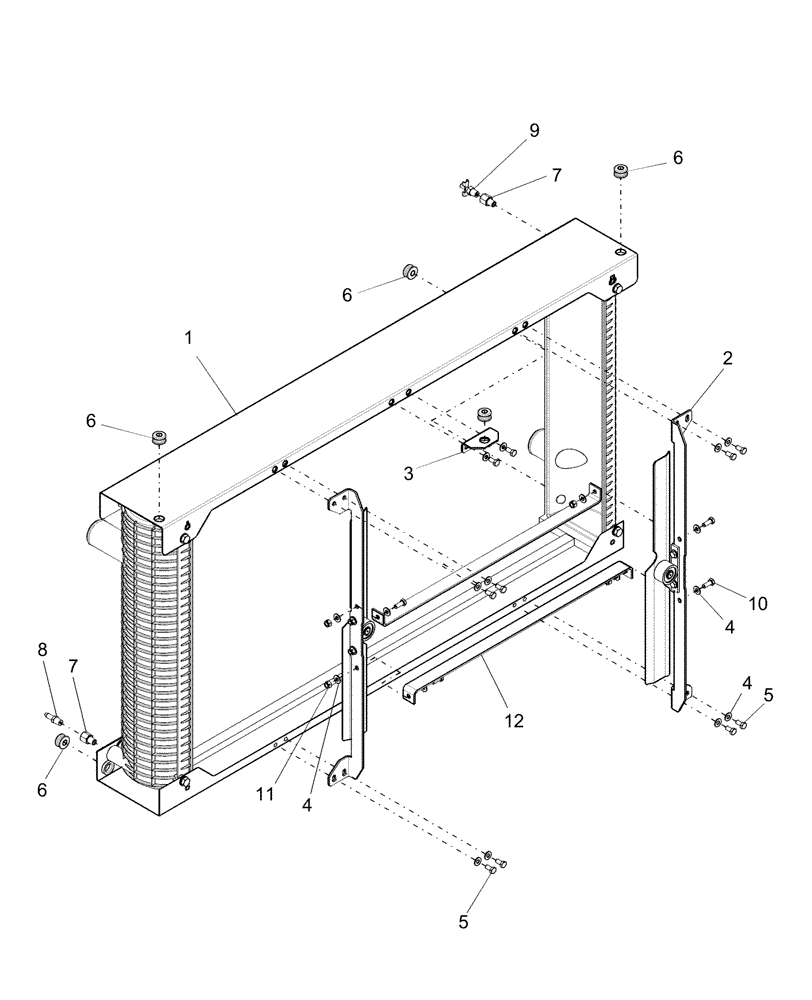

Запчасти Case IH AFX8010 (B.50.A.32[07]) - RADIATOR & DUAL WIPER BLADE ASSEMBLY ASN HAJ106401 B - Power Production

1

87284213

RADIATOR

Used with Tier 3 engine, Start Serial: HAJ106401

1шт.

2

87284845

BRACKET

CAC Chaff Wiper

2шт.

3

87106644

BRACKET

Radiator

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

10шт.

6

86976579

ISOLATOR,28.07mm OD x 25.91mm L

5шт.

7

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

8

847367

FITTING,5/16" Hose x 1/4" NPTF, Barbed

1шт.

9

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

12

87360620

SUPPORT

2шт.
