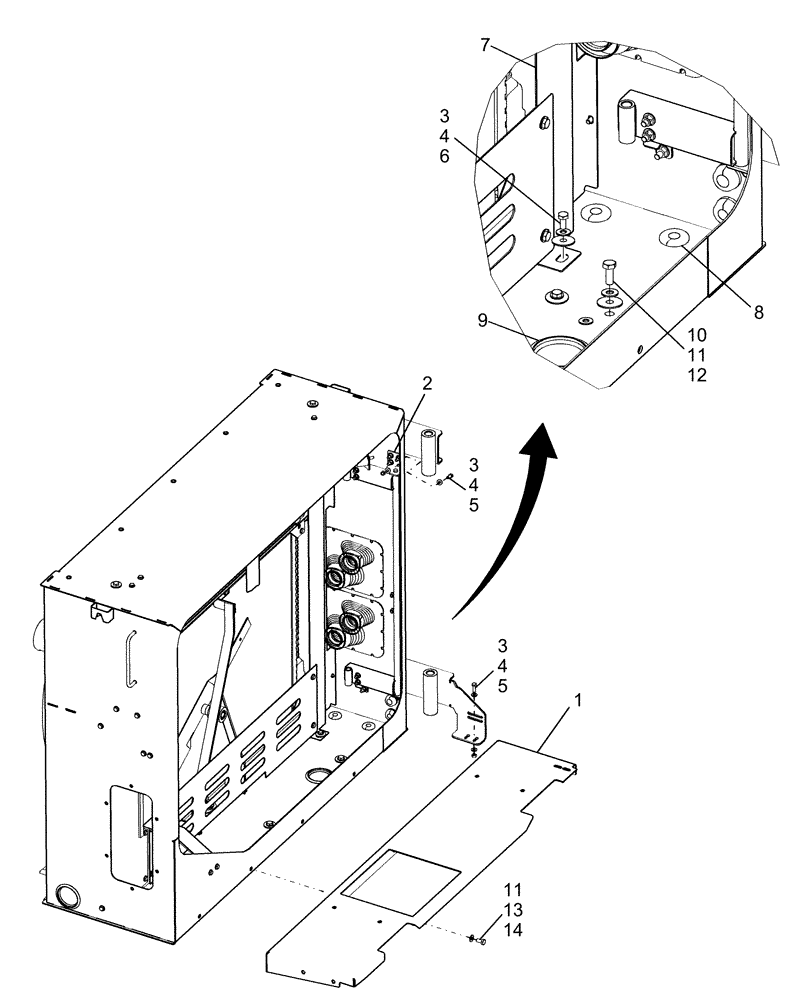

Запчасти Case IH AFX8010 (B.50.A.32[05]) - PLATFORM, COOLING BOX B - Power Production

1

87280517

PLATFORM

1шт.

2

87109155

BRACKET

Top Hinge

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

5

9706690

NUT,M8 x 1.25, Cl 8

6шт.

6

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

1шт.

7

87106215

PANEL

1шт.

8

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

2шт.

9

87000778

PLUG,89mm OD

1шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

12

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

3шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

14

100016

NUT,M10 x 1.5, Cl 8

4шт.
