(B.50.A.32[02]) - RADIATOR & WIPER BLADE

Запчасти Case IH AFX8010 (B.50.A.32[02]) - RADIATOR & WIPER BLADE B - Power Production

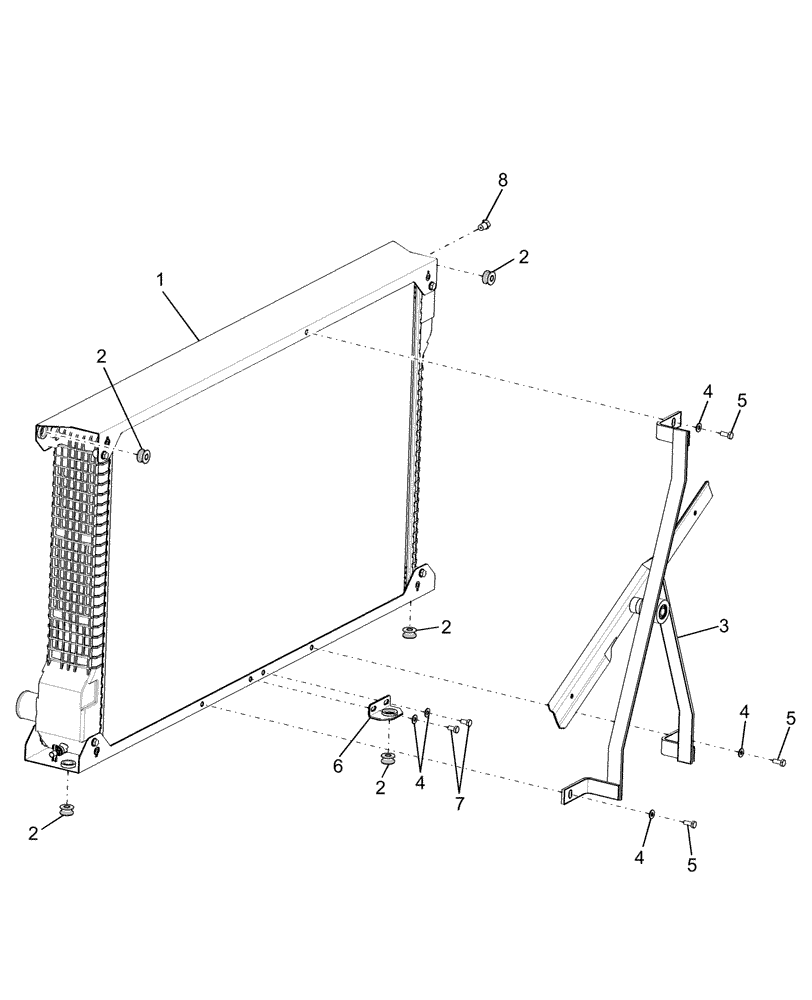

Схема запчастей Case IH AFX8010 - (B.50.A.32[02]) - RADIATOR & WIPER BLADE B - Power Production
4
5
7
2
1
3
2
6
4
4
2
2
5
2
5
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86976380

RADIATOR

Denso, pn 7A0029301A, Start Year: 01-MAR-03

1шт.

2

86976579

ISOLATOR,28.07mm OD x 25.91mm L

Center Bonded Isomount

5шт.

3

86998131

FAN BLADE

BLADE

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

6

87106644

BRACKET

Radiator Isomount

1шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

8

87026949

FITTING,45 Degree, 5/16" Hose x 1/4" NPTF, Barbed

Elbow

1шт.
