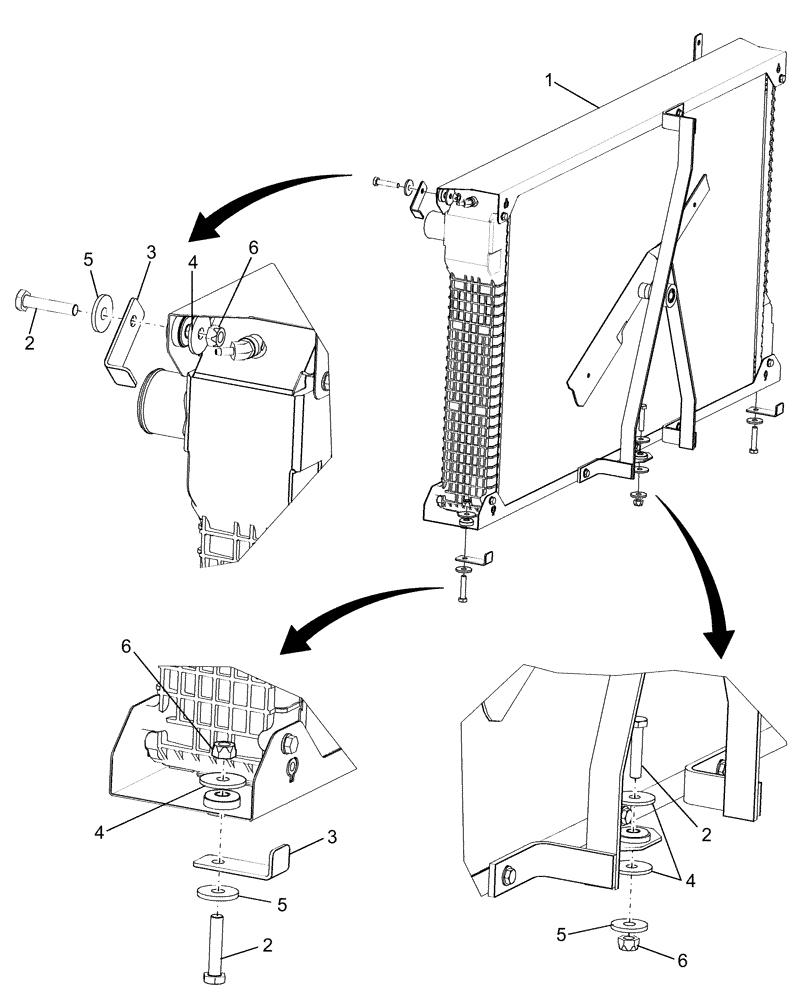

Запчасти Case IH AFX8010 (B.50.A.32[01]) - RADIATOR MOUNTING B - Power Production

1

87281277

RADIATOR

, Start Year: 01-AUG-03

1шт.

2

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

5шт.

3

87106857

BRACKET

Isomount Spacer

4шт.

4

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

6шт.

5

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

5шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.
