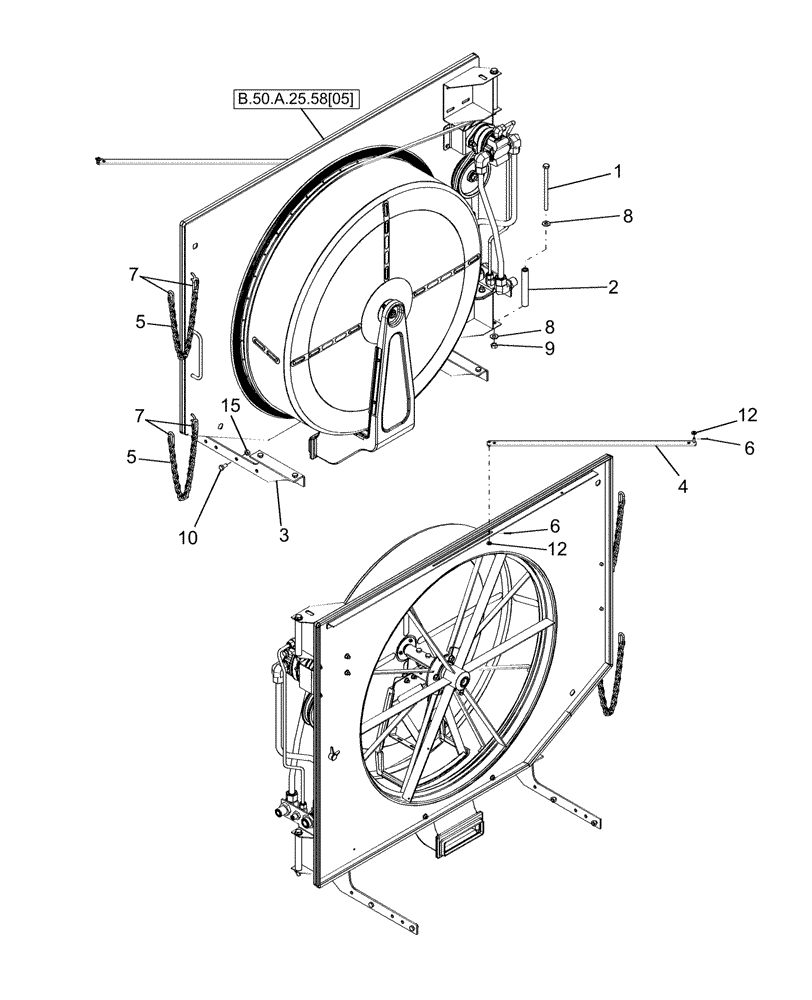

Запчасти Case IH AFX8010 (B.50.A.25.58[4]) - ROTARY DUSTSCREEN - EU B - Power Production

1

336383

BOLT,Hex, M12 x 1.75 x 180mm, Cl 8.8

2шт.

2

87109309

SPACER

2шт.

3

86976802

BRACKET

2шт.

4

87000549

STRAP

1шт.

5

87105185

CHAIN,566.12mm L

2шт.

6

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

7

87107072

CHAIN LINK,44.299mm Pitch

Chain

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

9706685

NUT,M12 x 1.75, Cl 8

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

11

100016

NUT,M10 x 1.5, Cl 8

8шт.

12

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.
