(B.50.A.25.58[3]) - SCREEN ASSEMBLY - ROTARY AIR

Запчасти Case IH AFX8010 (B.50.A.25.58[3]) - SCREEN ASSEMBLY - ROTARY AIR B - Power Production

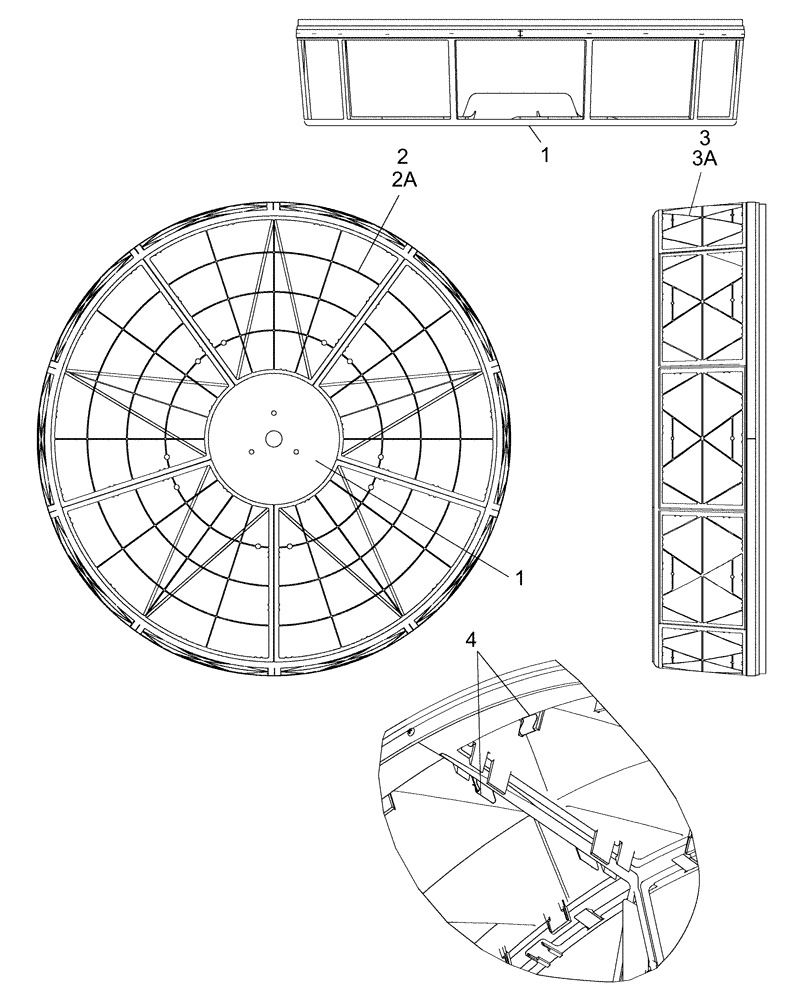

Схема запчастей Case IH AFX8010 - (B.50.A.25.58[3]) - SCREEN ASSEMBLY - ROTARY AIR B - Power Production
2
4
2a
1
1
3
3a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87410086

SUPPORT

Frame and Wear Strip Assembly

1шт.

2

86988942

KIT

Screen, Rear, Includes: 1 Ref. 2A and 10 of Ref. 4

1шт.

2a

86998565

SCREEN

Front Section

5шт.

3

86988941

KIT

Screen, Outer, Includes: 1 Ref. 3A and 10 of Ref. 4

1шт.

3a

86998564

SCREEN

Side Section

10шт.

4

86983638

CLIP

145шт.

5

448211A1

STRAP,3353mm L x 19.05mm W

Wear Strip

1шт.

Выбрано товаров: 7
