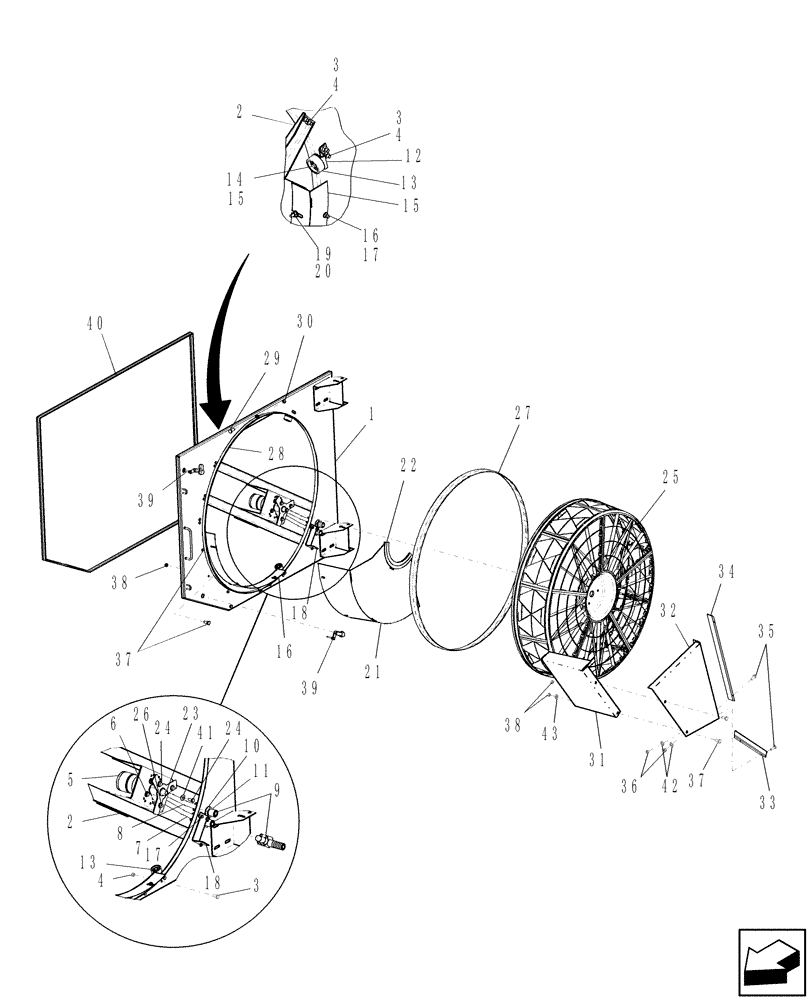

Запчасти Case IH AFX8010 (B.50.A.25.58[2]) - DOOR, DUSTSCREEN B - Power Production

1

87348678

DOOR

1шт.

2

86976611

SUPPORT

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

4

9706690

NUT,M8 x 1.25, Cl 8

14шт.

5

86995688

MOTOR, HYDRAULIC,293CC

1шт.

6

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

7

87000884

HYD TUBE,20 mm OD x 460.4, 70.1 mm L

Motor, Pressure

1шт.

8

87000885

HYD TUBE

Motor, Return

1шт.

9

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

2шт.

10

32455

WASHER

2шт.

11

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

12

86976607

SUPPORT

3шт.

13

87408568

BALL BEARING,44.45mm OD

3шт.

14

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

3шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

9шт.

16

87105398

BRACKET

1шт.

17

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

18

87001015

ANGLE

1шт.

19

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

21

87000952

PIN

1шт.

22

86976732

BRUSH

Inner

1шт.

23

86976779

HUB

Use with 86566099 Screw

1шт.

23

87315352

HUB

Use with 386045 Capscrew

1шт.

24

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

1шт.

24

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

25

87409302

SCREEN

Coarse Mesh

1шт.

26

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

27

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

Rotary Screen - Replaces 86976657

1шт.

28

86976658

CLAMP,1060mm

1шт.

29

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

30

231-1444

NUT,1/4"-20, GB

1шт.

31

87348352

SHEET

1шт.

32

87348625

SHEET

1шт.

33

86976571

BRUSH

1шт.

34

86976572

BRUSH

Outer

1шт.

35

44334

SCREW,Cross Pan Hd, M4 x 12

4шт.

36

100012

NUT,M4 x 0.7, Cl 8

4шт.

37

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

38

100016

NUT,M10 x 1.5, Cl 8

1шт.

39

87283386

LATCH

2шт.

40

86976597

SEAL

1шт.

41

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

42

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

43

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

3шт.
