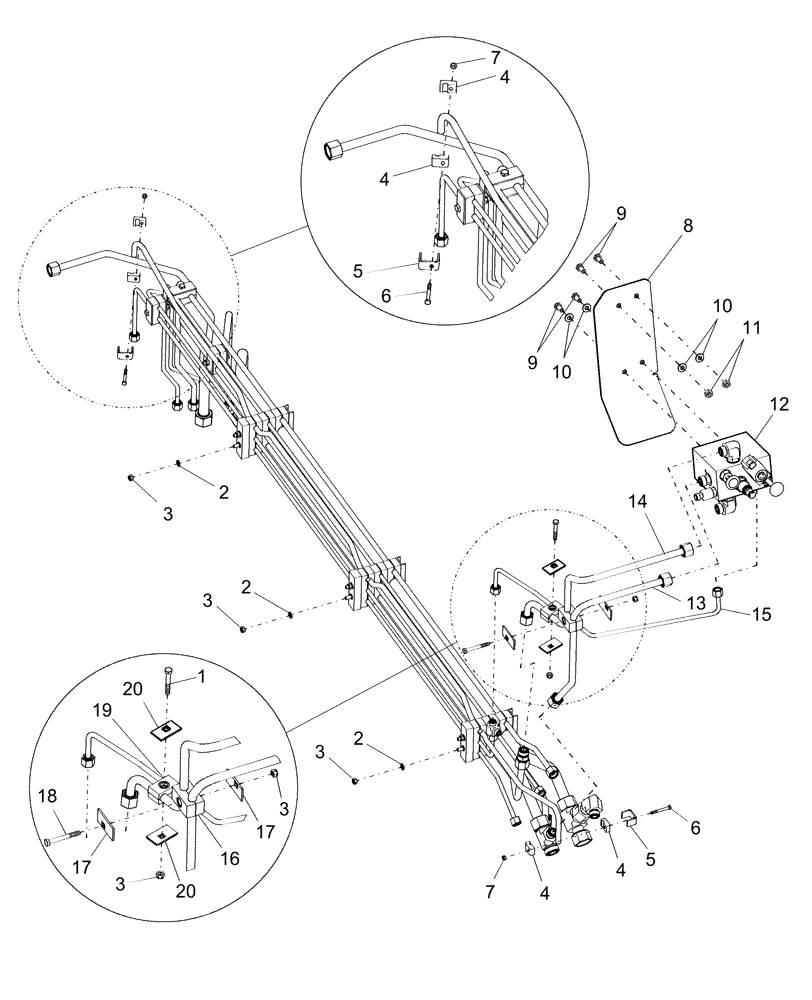

Запчасти Case IH AFX8010 (A.10.A[2]) - HYDRAULIC TUBES - TOW/PARK A - Distribution Systems

1

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

2

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

3

832-46408

NUT,M8 x 1.25, Cl 8

5шт.

4

433008

CLAMP

4шт.

5

442340

SUPPORT

2шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

87280113

BRACKET

1шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

87109702

HYDRAULIC VALVE

Park/Tow/Reg - with Fittings

1шт.

13

87109730

HYD TUBE,0.625 mm OD

Valve Supply

1шт.

14

87280109

HYD TUBE

Drain

1шт.

15

87280107

HYD TUBE,0.375" OD

Regulated Pressure

1шт.

16

87000150

CLAMP,15.869mm ID

Tube

1шт.

17

87000230

PLATE

Clamp, Hose

2шт.

18

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

19

87000159

CLAMP

Tube

1шт.

20

72180326

PLATE

Clamp, Hose

2шт.
