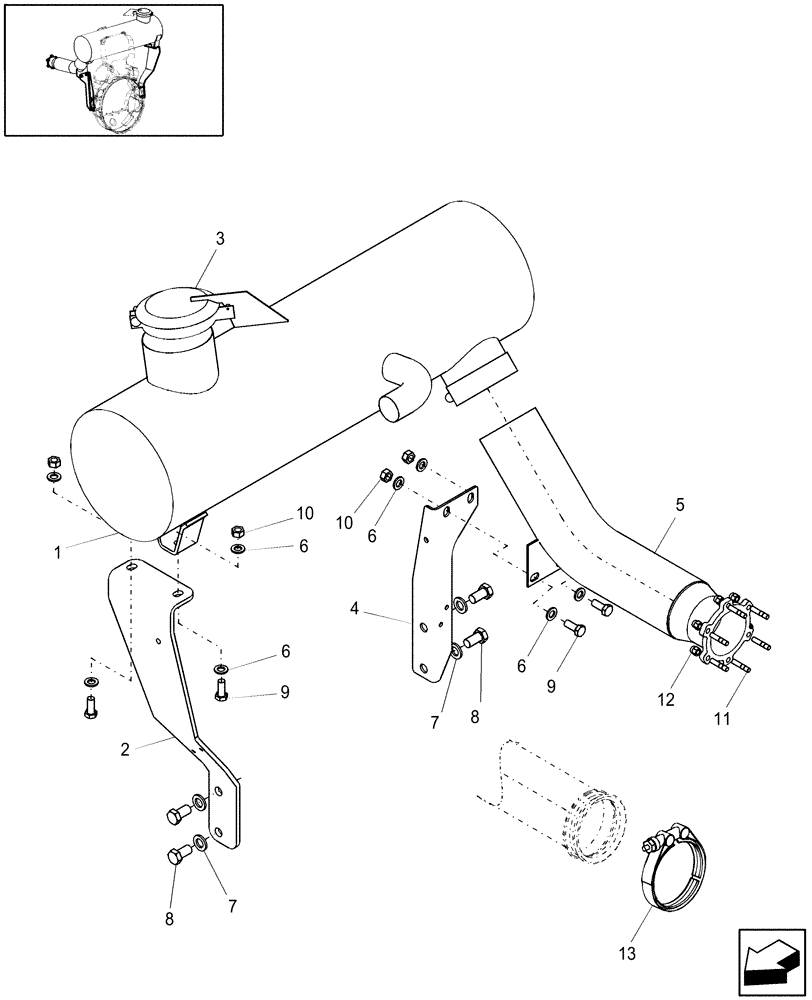

Запчасти Case IH AFX8010 (B.40.A.36) - MUFFLER & EXHAUST B - Power Production

1

86976531

MUFFLER

10.3 L Engine and Tier 3

1шт.

1

87106699

MUFFLER

IVECO Engine

1шт.

2

87109598

PLATE

1шт.

2

87283490

SUPPORT

Tier 3, Start Serial: HAJ106401

1шт.

3

86997809

COVER

1шт.

4

87109596

SUPPORT

1шт.

4

87283492

SUPPORT

Tier 3, Start Serial: HAJ106401

1шт.

5

86976533

EXHAUST SYSTEM PIPE

1шт.

5

87283493

EXHAUST SYSTEM PIPE

Tier 2

1шт.

5

87329445

EXHAUST SYSTEM PIPE

Tier 3 - Use with Ref. 13, Start Serial: HAJ106401

1шт.

6

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

4шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

10

9706685

NUT,M12 x 1.75, Cl 8

4шт.

11

84031344

STUD

M8 x 40

6шт.

12

84041352

LOCK NUT,M8 x 1.25, Cl8.8

6шт.

13

87329014

CLAMP

, Start Serial: HAJ106401

1шт.
