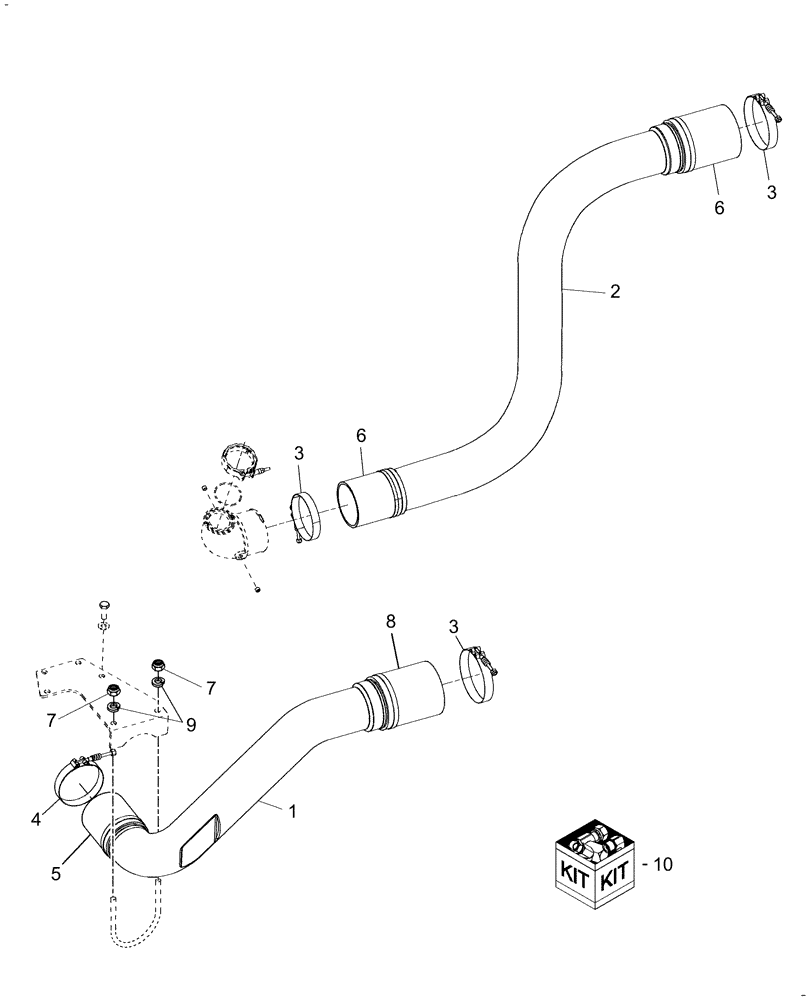

Запчасти Case IH AFX8010 (B.30.A.37[4]) - AIR CIRCUIT, ENGINE TURBO - SINGLE PLANE UPGRADE KIT B - Power Production

1

87648311

TUBE

Cold; Includes: Metal Tube, Plus Hose Ends, Ref.s 5 & 8

1шт.

2

87648309

AIR INTAKE TUBE,678.6, 584.7 mm L

Hot; Includes: Metal Tube, Plus Hose Ends, Ref. 6

1шт.

3

87420676

HOSE CLAMP,108mm - 115.8mm

3шт.

4

86976661

HOSE CLAMP,95.25mm - 104mm

1шт.

5

87732309

HOSE,88.90 mm ID x 95.25 mm

Charge Air Circuit; Tube End

1шт.

6

87732307

HOSE,101.6mm ID x 110mm L

Charge Air Circuit: Tube End

2шт.

7

231-4146

NUT,3/8"-16, GB

2шт.

8

87732308

HOSE,101mm ID x 110mm L

Charge Air Circuit; Tube End

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

84181355

SERVICE KIT

Kit, Single Plane Upgrade, See Fig. B.10[3]; Includes: Ref.s 1 Thru 9 & Those Components Found On Other Figures, As Indicated

1шт.
