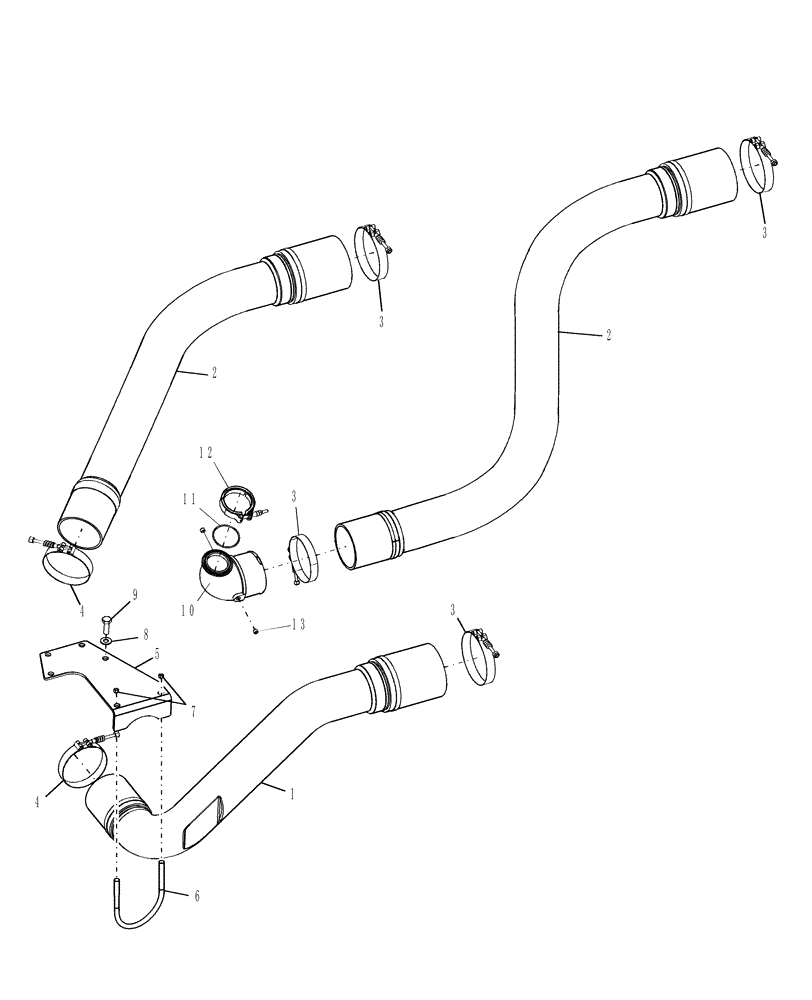

Запчасти Case IH AFX8010 (B.30.A.37[3]) - AIR CIRCUIT, ENGINE TURBO B - Power Production

1

87109575

TUBE

Cold

1шт.

1

87284685

TUBE

Cold, Tier 3

1шт.

2

87105616

TUBE

Hot - L Shaped

1шт.

2

87284686

AIR INTAKE TUBE

Hot - S Shaped - Tier 3

1шт.

3

87420676

HOSE CLAMP,108mm - 115.8mm

1шт.

4

86976661

HOSE CLAMP,95.25mm - 104mm

1шт.

5

87109471

BRACKET

Tube Support

1шт.

6

87028029

U-BOLT

3/8-16 x 3.56 x 5.5

1шт.

7

231-4146

NUT,3/8"-16, GB

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

10

86998476

ELBOW

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

J069053

CLAMP,66.54mm ID

Turbo Outlet, V-Band

1шт.

13

86998472

PLUG

2шт.
