Запчасти Case IH AFX8010 (B.30.A[1]) - AIR INTAKE - ENGINE B - Power Production

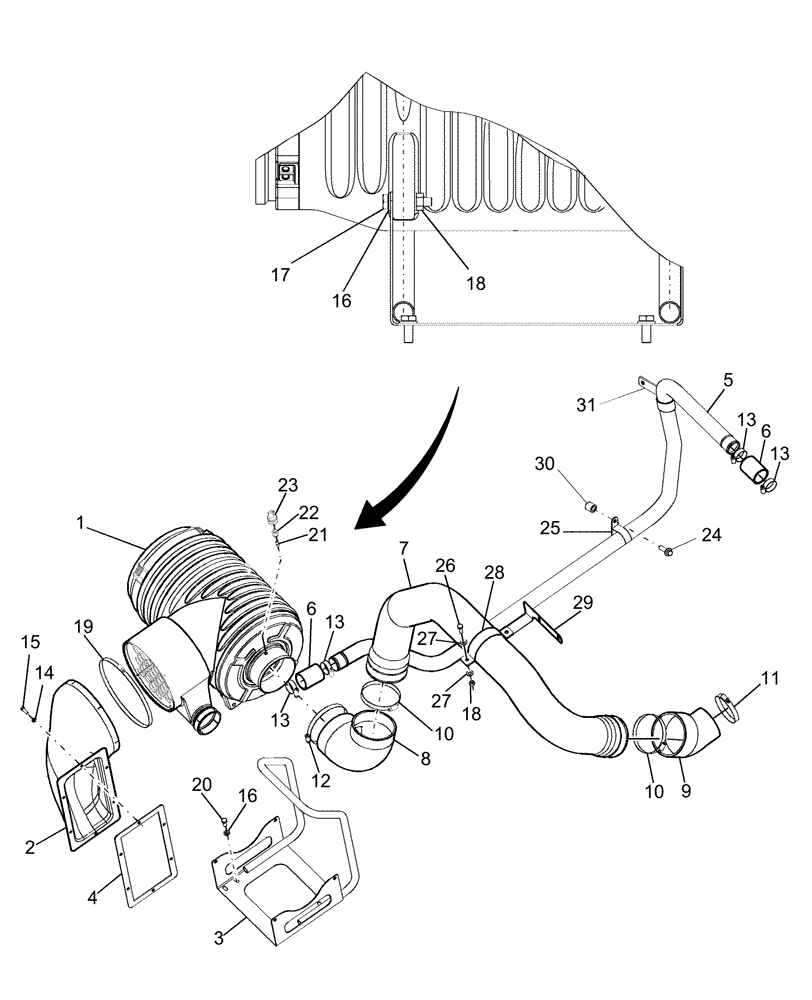

Схема запчастей Case IH AFX8010 - (B.30.A[1]) - AIR INTAKE - ENGINE B - Power Production
9
27
28
31
24
7
23
10
27
2
16
22
21
6
17
18
6
19
29
13
26
13
14
8
25
16
10
5
15
4
13
13
3
18
12
20
11
30
1

Артикул

Название

Примечание

Количество

1

87284162

AIR CLEANER

1шт.

For EU Only

1шт.

1

86998329

AIR CLEANER

1шт.

2

86998351

AIR DUCT

1шт.

3

86998339

BRACKET

1шт.

4

86999111

GASKET

1шт.

5

87109071

TUBE,50.80 mm OD

1шт.

6

86980983

RADIATOR HOSE,50.80 mm ID x 101.60 mm

2шт.

7

87109070

AIR INTAKE TUBE

1шт.

8

86995317

ELBOW

1шт.

9

86995562

ELBOW,102mm ID x 164mm L, SAE J200

1шт.

10

86637712

HOSE CLAMP,133mm - 156mm

Hose, 6"

2шт.

11

86637711

HOSE CLAMP,108mm - 130mm

Hose, 5"

1шт.

12

86633350

HOSE CLAMP,159mm - 181mm

Hose, 7"

1шт.

13

86625019

HOSE CLAMP,44mm - 67mm

Hose, 2.5"

4шт.

14

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

12шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

10шт.

17

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

18

100016

NUT,M10 x 1.5, Cl 8

6шт.

19

86636847

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

1шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

D36264

FITTING

1шт.

22

86977922

REDUCER,1/4"-18 NPTF x 1/8"-27 NPTF

1шт.

23

87013666

SWITCH,Air Filter Restriction

Pressure Transducer, Was 86604175

1шт.

24

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

25

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

28

87109174

CLAMP

2шт.

29

87108687

BRACKET

1шт.

30

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

31

87282059

CLAMP

1шт.

32

87802167

DECAL

Not Shown - for 87284162

1шт.

For EU Only

1шт.

Выбрано товаров: 35
