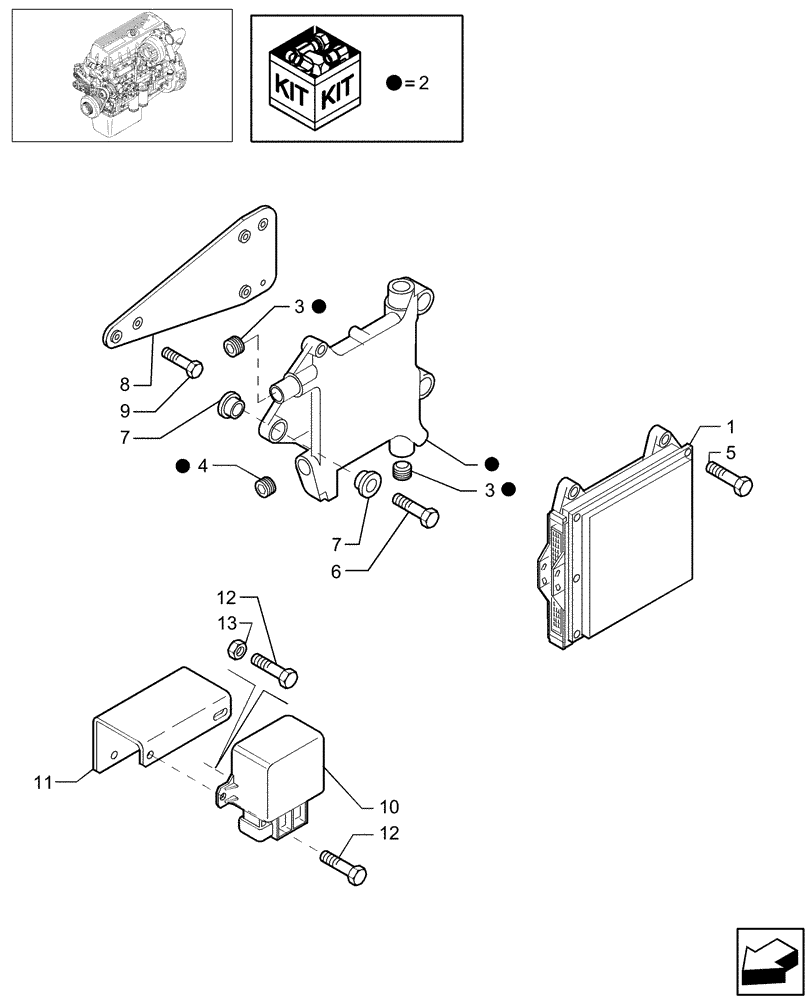

Запчасти Case IH AFX8010 (B.20.A.92) - ELECTRONIC INJECTION (504079746) B - Power Production

1

500365533

ECU

1шт.

1

500365533R

REMAN ELECT CONTROL

1шт.

1

500365533C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

500345719

SUPPORT

1шт.

3

98474481

PLUG

2шт.

4

99430692

PLUG

1шт.

5

16586624

SCREW,M8 x 35mm

M8 x 35

4шт.

6

4899042

BOLT,Flng, M10 x 1.5 x 25mm

M8 x 45

3шт.

7

98498817

ISOLATOR

6шт.

8

504079747

BRACKET

1шт.

9

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

1шт.

9

4899042

BOLT,Flng, M10 x 1.5 x 25mm

M8 x 45

2шт.

10

86619908

RELAY,12V, 150A

Grid Heater

1шт.

11

504036533

SUPPORT

Tier 2; For Tier 3, See Fig. B.10.A.95

1шт.

12

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 16

4шт.

13

17044621

NUT

M6

2шт.
