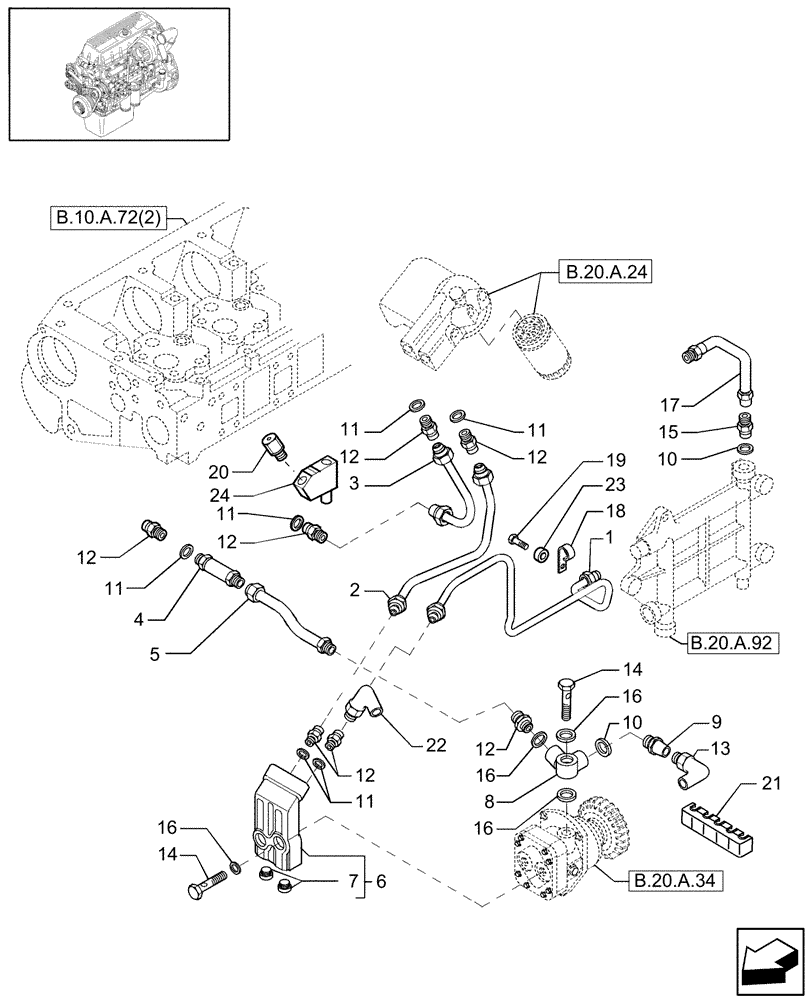

Запчасти Case IH AFX8010 (B.20.A.36) - FUEL LINES & RELATED PARTS (504032703) B - Power Production

1

504043312

TUBE

Fuel

1шт.

1

504132108

TUBE

Fuel, Tier 3, Start Serial: HAJ106401

1шт.

2

500348310

TUBE

Fuel

1шт.

3

500348313

TUBE

Fuel

1шт.

3

504056124

PIPE

Tier 3, Start Serial: HAJ106401

1шт.

4

500310076

FITTING

2шт.

5

500348301

TUBE

Fuel

1шт.

6

500314313

CONNECTING BLOCK

Assy

1шт.

7

98472271

PLUG

2шт.

7

504051237

PLUG

Tier 3, Start Serial: HAJ106401

2шт.

8

500348306

ELBOW

1шт.

9

500328251

VALVE PRESSURE RELIE

1шт.

10

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

2шт.

11

99489019

SEALING WASHER

D=16 x 24 x 1.5 mm

7шт.

12

41031569

FITTING

M16 x 1.5 - M18 x 1.5

5шт.

12

16500315

HYD CONNECTOR

Tier 3, Start Serial: HAJ106401

7шт.

13

500350162

ELBOW

1шт.

14

4864084

BANJO BOLT

M16 x 1.5

3шт.

15

1244661

FITTING

1шт.

16

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

D=16 x 24 x 1.9 mm

4шт.

17

500390069

TUBE

Fuel

1шт.

18

17316590

BRACKET

D=12 mm

3шт.

18

17316599

CLAMP

Tier 3, Start Serial: HAJ106401

3шт.

19

16597924

SCREW,M8 x 14mm

M8 x 14

3шт.

19

16673735

BOLT,Hex, M8 x 1.25 x 25mm

Tier 3, Start Serial: HAJ106401

2шт.

19

2852323

SCREW,M8 x 1.25 x 14mm

Tier 3, Start Serial: HAJ106401

1шт.

20

504112433

VALVE

Reduction - Tier 3, Start Serial: HAJ106401

3шт.

21

500306941

CLAMP

Tier 3, Start Serial: HAJ106401

2шт.

22

16504114

ELBOW

Tier 3, Start Serial: HAJ106401

1шт.

23

13605711

SPACER

Tier 3, Start Serial: HAJ106401

2шт.

24

504125079

UNION

Tier 3, Start Serial: HAJ106401

1шт.
