(B.20.A.34) - FUEL PUMP & RELATED PARTS (504050135)

Запчасти Case IH AFX8010 (B.20.A.34) - FUEL PUMP & RELATED PARTS (504050135) B - Power Production

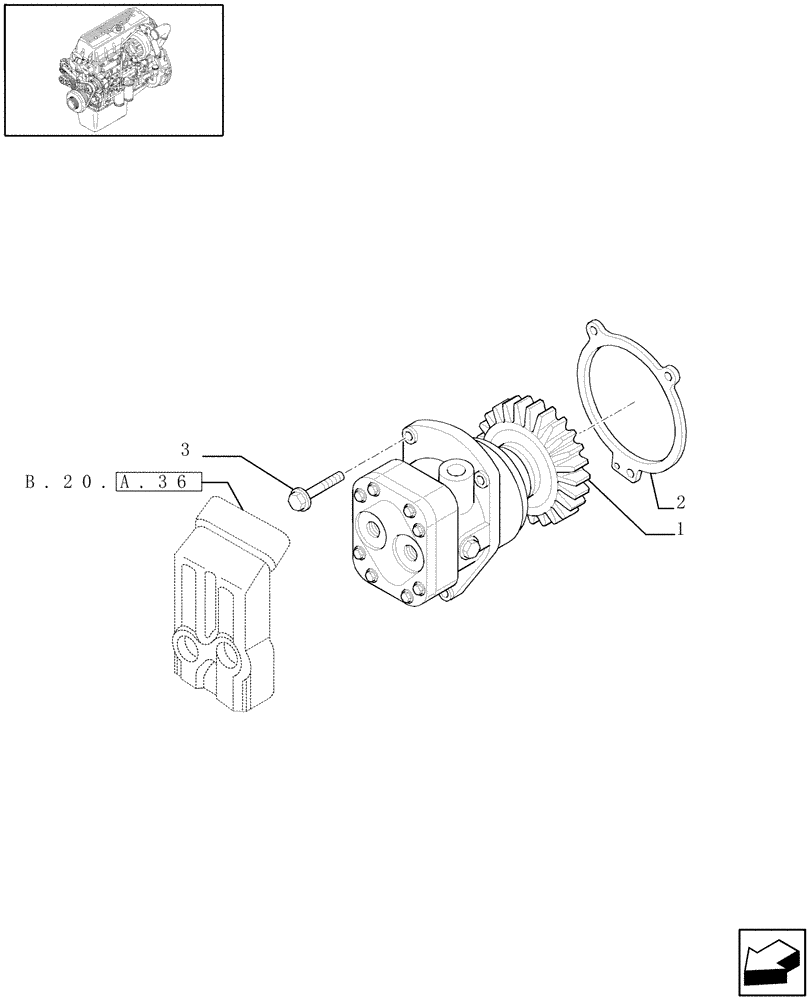

Схема запчастей Case IH AFX8010 - (B.20.A.34) - FUEL PUMP & RELATED PARTS (504050135) B - Power Production
3
1
2
b.20.a.36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504040201

FUEL PUMP

1шт.

1

504066263

FUEL PUMP

Tier 3

1шт.

504066263R

REMAN-FUEL INJ PUMP

AFX8010 TIER 3 PIN HAJ105105 THRU HAJ199999

1шт.

504066263C

CORE-FUEL INJ PUMP

Return Number

1шт.

2

99447382

GASKET

1шт.

2

504045787

SEAL

Tier 3, Start Serial: HAJ106401

1шт.

3

16673734

SCREW,M8 x 25mm

M8 x 25

3шт.

3

16673735

BOLT,Hex, M8 x 1.25 x 25mm

Tier 3, Start Serial: HAJ106401

3шт.
