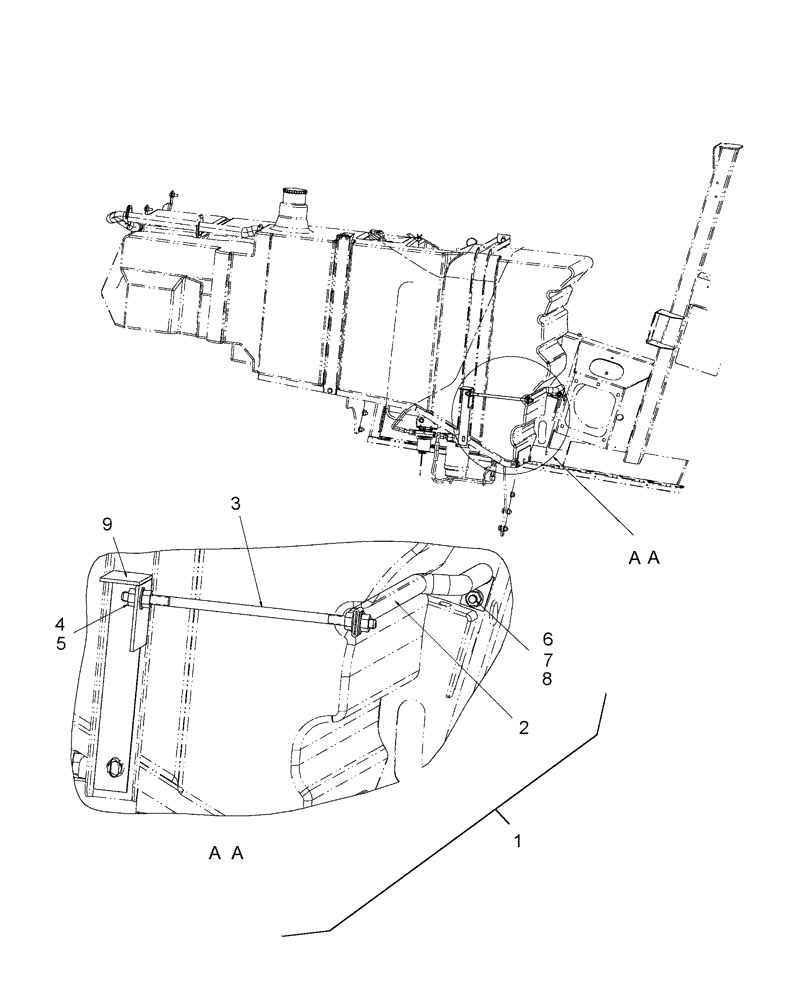

Запчасти Case IH AFX8010 (B.20.A.22[2]) - FUEL TANK SUPPORT KIT B - Power Production

1

87510614

KIT

Fuel Tank Support With Chopper Option

1шт.

1

87520952

KIT

Fuel Tank Support

1шт.

2

87510669

SUPPORT

With Chopper Option

1шт.

2

87369684

SUPPORT

1шт.

3

87510595

TIE-ROD

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

5

9706685

NUT,M12 x 1.75, Cl 8

4шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

100016

NUT,M10 x 1.5, Cl 8

1шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

9

87510668

BRACKET

1шт.
