(B.20.A.22[1]) - TANK, FUEL - MAIN

Запчасти Case IH AFX8010 (B.20.A.22[1]) - TANK, FUEL - MAIN B - Power Production

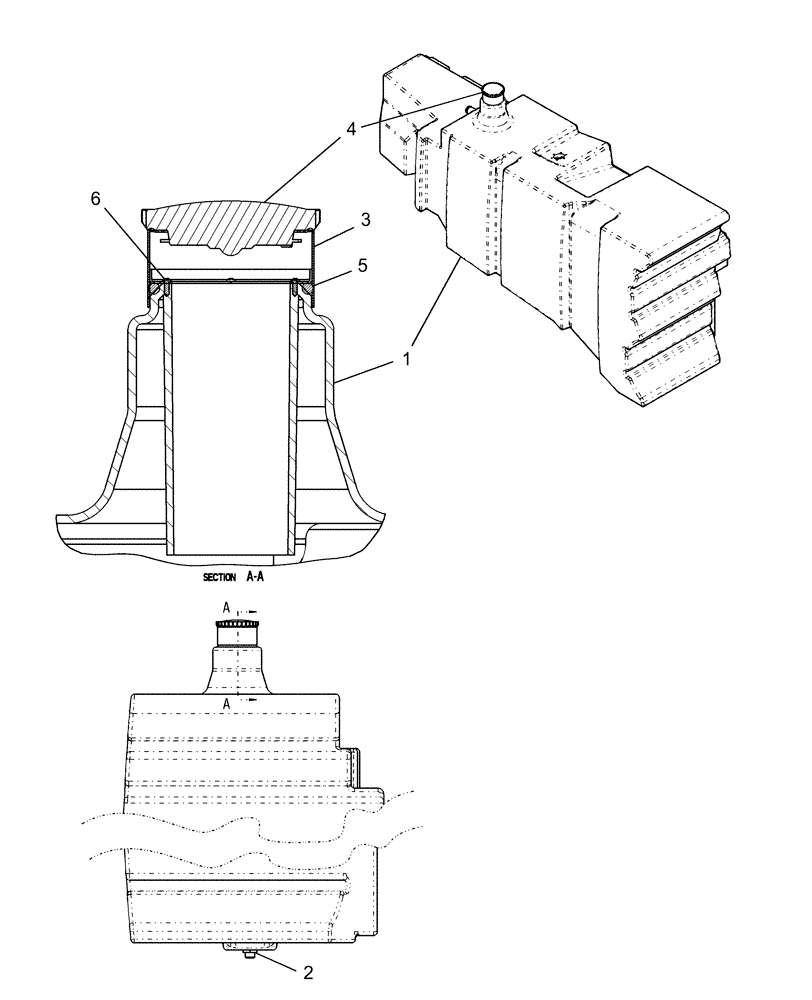

Схема запчастей Case IH AFX8010 - (B.20.A.22[1]) - TANK, FUEL - MAIN B - Power Production
1
3
5
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87280968

FUEL TANK

Main, Includes Ref. 1 thru 6

1шт.

1

87351468

FUEL TANK

Main, With Tie-Rod and End Support

1шт.

2

86975155

GASKET,1" - 12

Fitting

1шт.

3

87106621

COLLAR

1шт.

4

84041999

FILLER CAP

1шт.

5

87106619

O-RING,90mm ID x 7mm Width

1шт.

6

87106660

SELF-TAP SCREW

4шт.

7

87357091

FUEL FILTER

Removeable - Not Shown

1шт.
