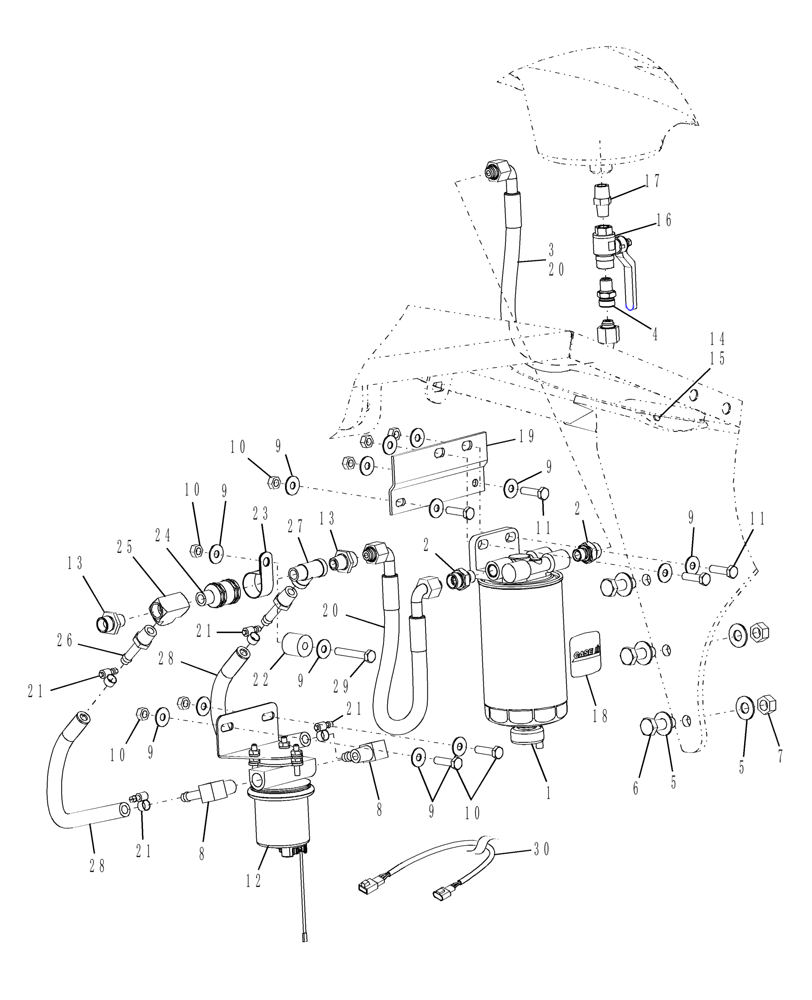

Запчасти Case IH AFX8010 (B.20.A[2]) - FUEL SYSTEM B - Power Production

1

84989839

FUEL FILTER

Without Sensor, Serial Range: -HAJ106401

1шт.

1

87332468

With Sensor 88740335, Start Serial: HAJ106401

1шт.

1

87525714

FUEL FILTER

With Sensor 87525715

1шт.

2

84431916

FITTING

1шт.

3

84434312

FLEXIBLE HOSE

460 mm long

1шт.

3

87510791

FLEXIBLE HOSE

415 mm long, 90 Degree Ends

1шт.

4

84069089

HYD CONNECTOR,M18 x 1.5 NPT

Coupling

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

6

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

6шт.

7

9706685

NUT,M12 x 1.75, Cl 8

6шт.

8

87017042

FITTING,90 Degree, 3/8" Hose x 3/8" NPTF Beaded

Stem, was 84438779

2шт.

9

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

8шт.

10

9706690

NUT,M8 x 1.25, Cl 8

1шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

12

84432306

FUEL PUMP,5A

1шт.

13

521872

HYD CONNECTOR

Nipple

2шт.

14

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

3шт.

15

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

3шт.

16

84011517

DRAINCOCK/TAP SUPPLY,1/4" x 1/4"

1шт.

17

86642918

REDUCER,3/8"-18 NPTF x 1/4"-18 NPTF

Nipple

1шт.

18

87405724

EMBLEM

CASE IH

1шт.

19

87332643

BRACKET

Painted

1шт.

20

87380475

FLEXIBLE HOSE,10mm ID x 415mm L, SAE 100R6

Fuel Filter To Tank Draincock; L = 415mm, 90 Degree Ends, Start Serial: HAJ106401

2шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

21

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

, Start Serial: HAJ106401

4шт.

22

9611984

SPACER

1шт.

23

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

24

87365506

CHECK VALVE

1шт.

25

217-12

TEE,3/8"-18 NPTF Fem

Pipe

1шт.

26

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

2шт.

27

217-52

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

1шт.

28

87301674

HOSE,9.53mm ID x 240mm L

Hose Fuel Return

2шт.

29

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

30

87525937

WIRE HARNESS

Jumper Harness - ONLY with 87525714, Years: 01-JAN-06-31-DEC-06

1шт.
