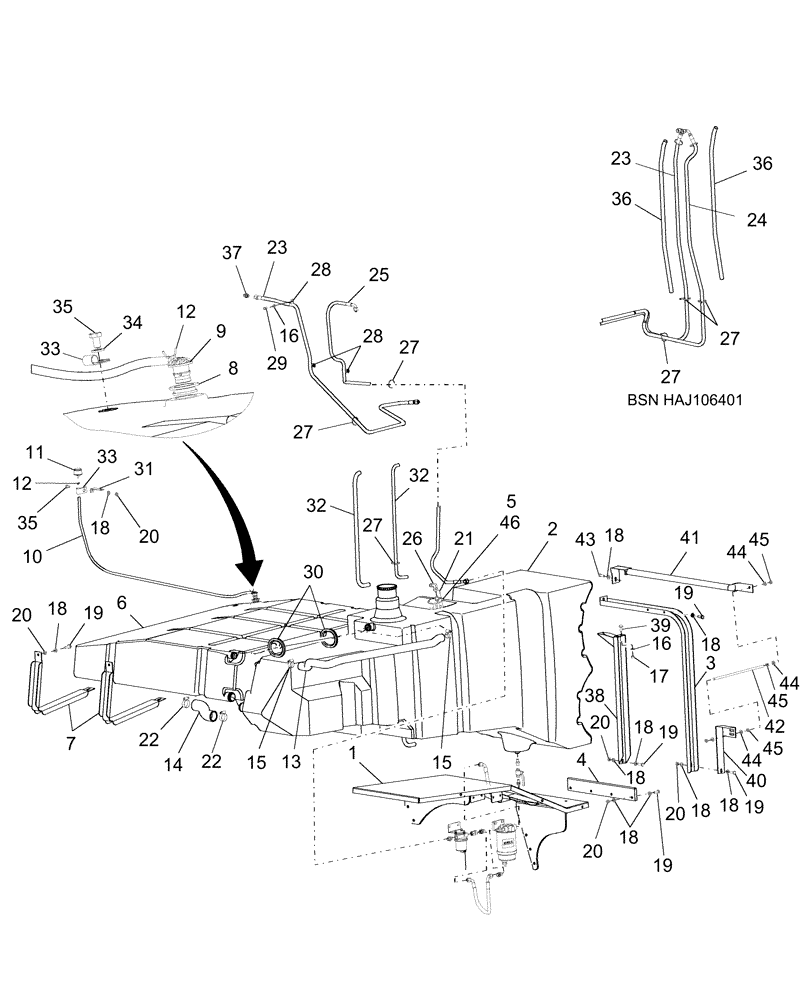

Запчасти Case IH AFX8010 (B.20.A[1]) - FUEL SYSTEM B - Power Production

1

87282293

PLATE

Support

1шт.

For NA Only

1шт.

1

87510788

SUPPORT ASSY.

Support, Tier 3

1шт.

For NA Only

1шт.

1

87282291

SUPPORT

1шт.

For EU Only

1шт.

2

87280968

FUEL TANK

Main, was 87109558

1шт.

2

87351468

FUEL TANK

, Start Serial: HAJ106401

1шт.

3

86638144

SUPPORT

1шт.

3

87608408

STRAP

, Start Serial: HAJ106401

1шт.

4

87282297

PLATE

Stop, was 8699673

1шт.

5

86976912

FUEL GAUGE

1шт.

5

87392122

SENDER UNIT

Incl Ref 46 - Gasket, Start Serial: HAJ106401

1шт.

6

86998004

FUEL TANK

Auxiliary

1шт.

7

86999837

SUPPORT

2шт.

Replaced For Service By Two Parts: 87584443 & 87584444; Hardware Remains The Same

1шт.

8

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

1шт.

9

86999948

SAFETY VALVE

1шт.

10

A21561X

HOSE,6.35mm ID x 7620mm L

Breather, Bulk, Cut to Length Rq'd.

1шт.

11

86999949

FUEL FILTER

Vent

1шт.

12

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

13

87000616

HOSE,38.10 mm ID x 675.00 mm, SAE 30R6 / SAE 30R7

Between Fuel Tanks

1шт.

14

87000615

HOSE,50.81 mm ID x 162.80 mm, SAE 30R6/SAE 30R7

Between Fuel Tanks

1шт.

15

86634186

HOSE CLAMP,32mm - 54mm

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Was 84432306

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

11шт.

20

100016

NUT,M10 x 1.5, Cl 8

11шт.

21

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Pan Hd, M5 x 16

6шт.

22

86625019

HOSE CLAMP,44mm - 67mm

2шт.

23

87314674

HOSE,10mm ID x 2381mm L, SAE 100R6

Fuel Return, Tier 3; L = 2381mm, Start Serial: HAJ106401

1шт.

23

87109291

HOSE

Fuel Return; L = 4630mm, Serial Range: -HAJ106401

1шт.

24

87109292

HOSE

L = 3800mm, Serial Range: -HAJ106401

1шт.

25

86975310

HOSE,10mm ID x 3100mm L, SAE 100R6

Engine Fuel Supply; L = 3100mm

1шт.

26

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

27

86566989

CABLE TIE,208mm L

CABLE STRAP

8шт.

28

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

Was 86594406

3шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

30

87280963

Protection Edge - 290 mm Length

2шт.

31

87280946

BRACKET

1шт.

32

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

35

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

36

291262A2

CONDUIT

2шт.

Sold In Bulk Rolls (L = 3930 mm); Cut To Desired Length

1шт.

37

84431916

FITTING

1шт.

38

87107355

STRAP

1шт.

39

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

87510668

BRACKET

1шт.

41

87369684

SUPPORT

1шт.

42

87390420

ROD

1шт.

43

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

1шт.

44

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

45

9706685

NUT,M12 x 1.75, Cl 8

4шт.

46

9832364

SEAL

Fuel Gauge

1шт.
