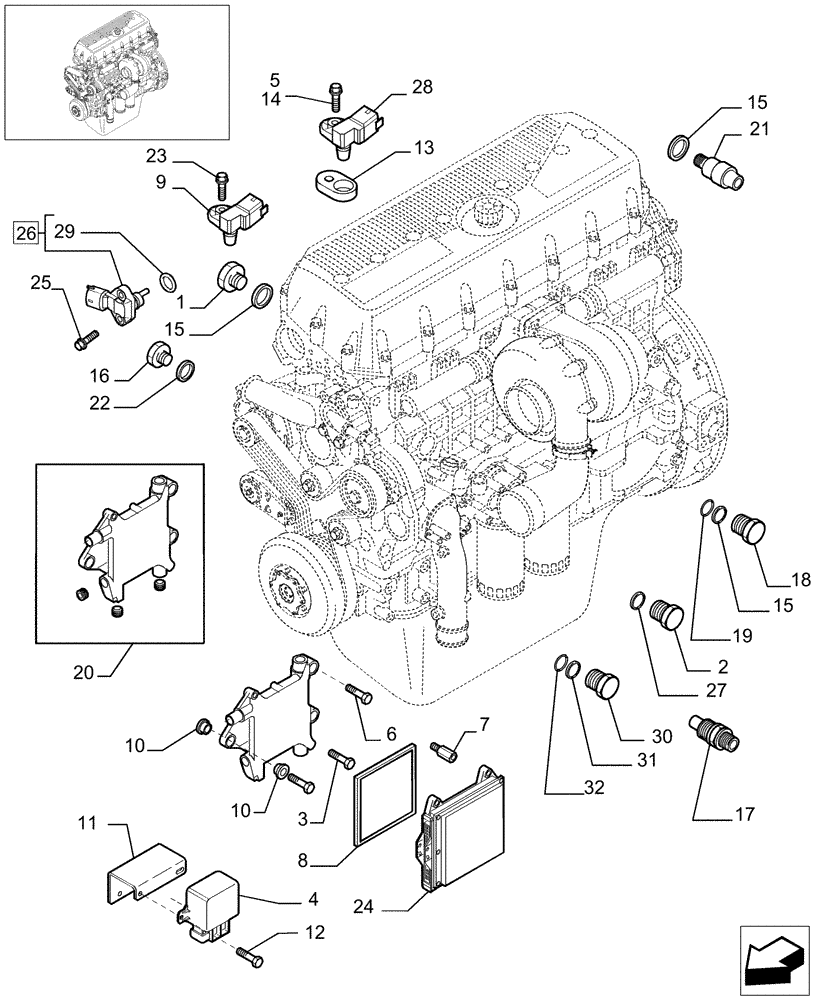

Запчасти Case IH AFX8010 (B.10.A.95) - ENGINE SENSORS & ECU - TIER 3 - PIN HAJ106401 AND AFTER B - Power Production

1

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

2

10300714

PLUG,M16 x 1.5 x 14

1шт.

3

2854083

BOLT,Flng, M6 x 1 x 30mm

8шт.

4

86619908

RELAY,12V, 150A

1шт.

5

16689324

SCREW,M6 x 25mm

1шт.

6

16586825

BOLT,Hex, M8 x 1.25 x 45mm

3шт.

7

99475194

SPACER

1шт.

8

504070042

GASKET

1шт.

9

504073323

SENSOR

Air Pressure & Temperature. 4 wire

1шт.

10

98498817

ISOLATOR

6шт.

11

504031939

BRACKET

1шт.

12

18137825

BOLT,Hex, M6 x 16mm

4шт.

13

504163664

SPACER

1шт.

14

16689024

SCREW,M16 x 12mm

1шт.

15

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

16

16887515

PLUG

1шт.

17

82017881

SENSOR

Coolant/Fuel Temperature

2шт.

18

504084571

PLUG

1шт.

19

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

20

504097239

SUPPORT

1шт.

21

500346371

SENSOR

Clogged Fuel Filter

1шт.

22

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

23

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

24

2854594

ECU

1шт.

24

2854594R

REMAN-MODULE

1шт.

24

2854594C

CORE-MODULE

Return Number

1шт.

25

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

26

4890193

SENSOR

Oil Pressure & Temperature

1шт.

27

99489019

SEALING WASHER

1шт.

28

504096645

TRANSMITTER

Crankshaft & Camshaft Speed Sensor, 2 wire

2шт.

29

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

30

500337200

PLUG

2шт.

31

500337199

O-RING

1шт.

32

14453181

O-RING,0.489" ID x 0.07" Width

1шт.
