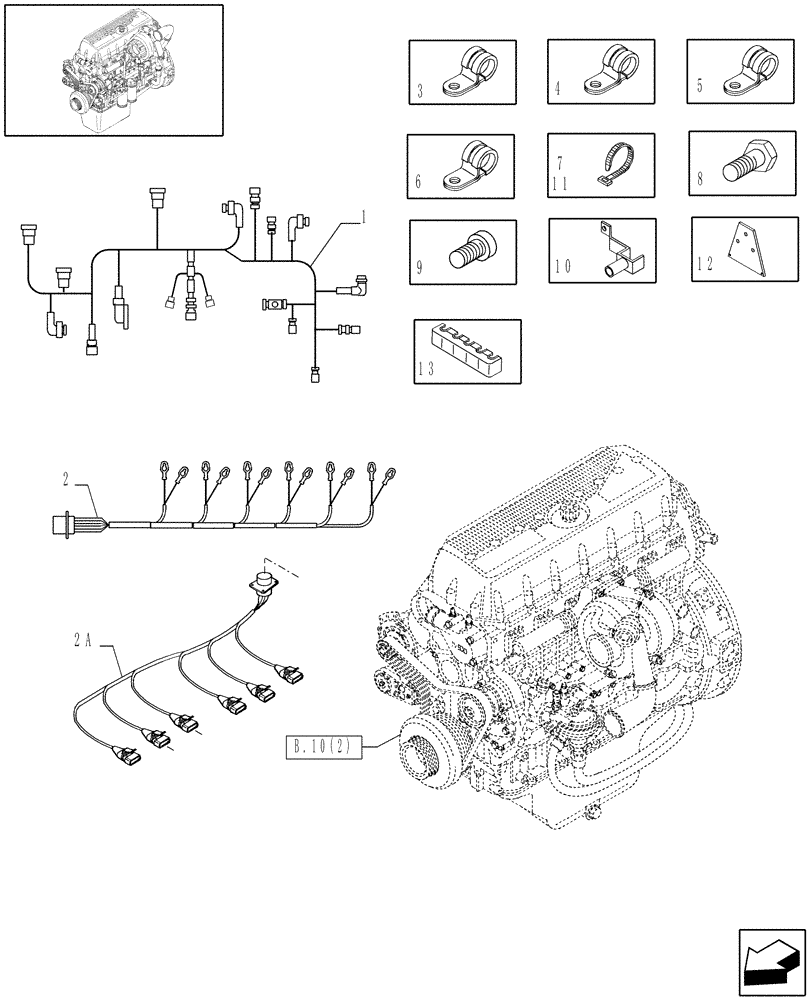

Запчасти Case IH AFX8010 (B.10.A.95[2]) - ENGINE ELECTRIC INSTALLATION (504032829) B - Power Production
![Схема запчастей Case IH AFX8010 - (B.10.A.95[2]) - ENGINE ELECTRIC INSTALLATION (504032829) B - Power Production](https://partsell.ru/storage/images/caseih/865532.png)
2
b.10(2)
10
5
6
4
7
12
8
2a
13
1
11
9
3
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
504041674
WIRE HARNESS
Used On Engine Type "J": See Ninth Character On Engine Data Tag
1шт.
1
504074628
ELECTRIC CABLE
Used On Engine Type "M": See Ninth Character On Engine Data Tag
1шт.
2
500347901
WIRE HARNESS
Used On Engine Type "J": See Ninth Character On Engine Data Tag
1шт.
2
504009221
WIRE HARNESS
Used On Engine Type "M" See Ninth Character On Engine Data Tag
1шт.
