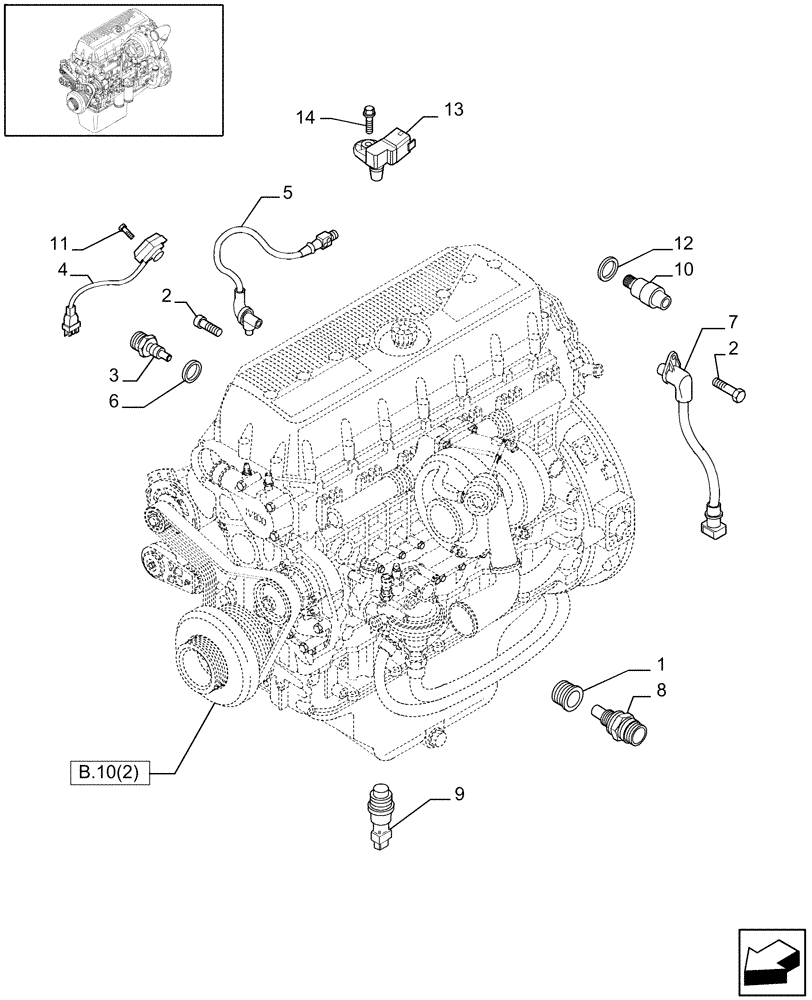

Запчасти Case IH AFX8010 (B.10.A.95[1]) - ENGINE SENSORS (504037555) B - Power Production

1

504035912

ADAPTER

1шт.

2

16688924

SCREW,M6 x 10mm

M6 x 10

2шт.

3

98412656

TEMPERATURE SENDER

Air Temperature Sensor

1шт.

Used On Engine Type "J"; See Ninth Character On ECU Data Tag

1шт.

4

500360579

SENDER UNIT

Air Pressure Sensor

1шт.

Used On Engine Type "J"; See Ninth Character On ECU Data Tag

1шт.

5

99450797

SENDER UNIT

Camshaft Position Sensor

1шт.

6

99489019

SEALING WASHER

1шт.

7

82017874

SENSOR

Flywheel Position Sensor

1шт.

8

82017881

SENSOR

Coolant/Fuel Temperature

1шт.

9

500386057

SENDER UNIT

Coolant Temperature

1шт.

10

500346371

SENSOR

Plugged Fuel Filter Switch

1шт.

11

16597224

SCREW,Hex, M6 x 18mm, Cl 8.8

M6 x 18

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

1шт.

13

504073323

SENSOR

Sensor, Air Pressure & Temperature, 4 wire

1шт.

Replaces Refs. 3 & 4

1шт.

Used On Engine Type "M"; See Ninth Character On ECU Data Tag

1шт.

14

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.
