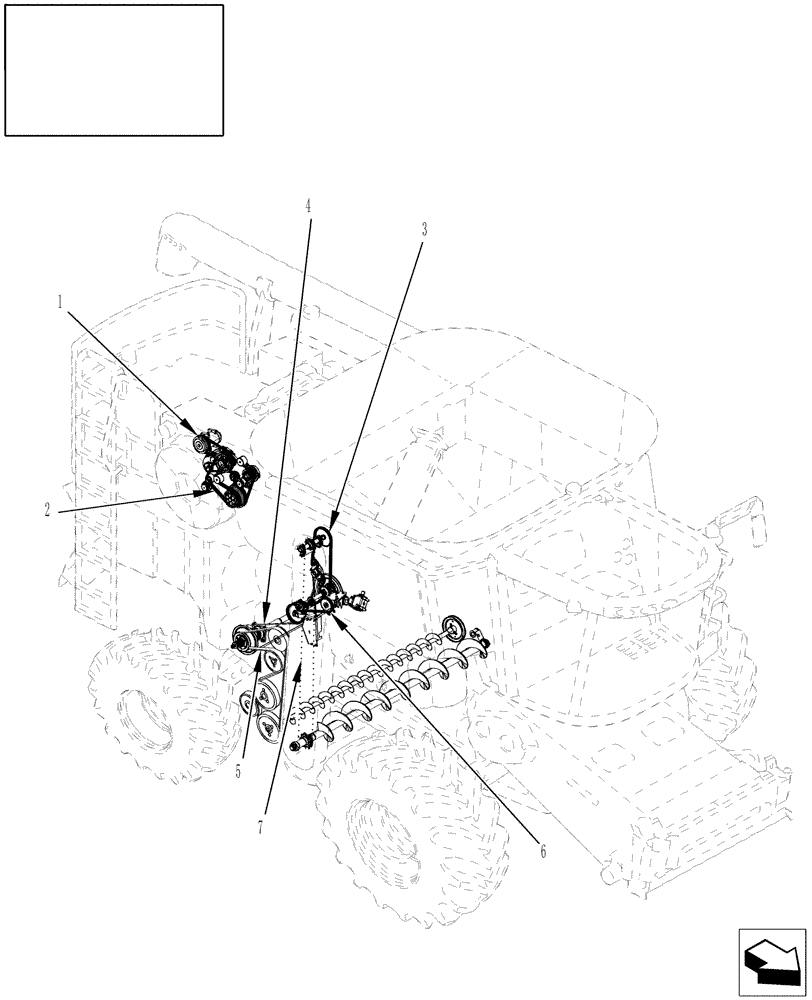

Запчасти Case IH AFX8010 (01) - BELTS & CHAINS - RIGHT SIDE A - Distribution Systems

1

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Alt., A/C, Water Pump

1шт.

See Figure E.40.D.31

1шт.

Europe Only

1шт.

1

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Alt., A/C, Water Pump

1шт.

See Figure E.40.D.31

1шт.

For NA Only

1шт.

2

87282305

V-BELT,35.40 mm W x 1555.00 mm L

Fan

1шт.

See Figure B.50.A.54

1шт.

Europe Only

1шт.

2

87282305

V-BELT,35.40 mm W x 1555.00 mm L

Fan

1шт.

See Figure B.50.A.54

1шт.

For NA Only

1шт.

3

87584827

CHAIN

Elevator Drive

1шт.

See Figure K.60.B.52 (1)

1шт.

4

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble Up Drive

1шт.

See Figure K.60.B.40 (1)

1шт.

5

87109130

V-BELT,0.88" W x 88.50" L

Tailings Processor, HCC

1шт.

See Figure K.62.C.41

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

5

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

See Figure K.62.C.41

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

6

87584814

CHAIN

Bubble - Up Drive

1шт.

See Figure K.60.B.40 (1)

1шт.

7

87281911

ELEVATOR CHAIN,CA550HD, 145 Links x 41.4mm = 6003mm

Includes Paddles

1шт.

See Figure K.60.B.52 (1)

1шт.
