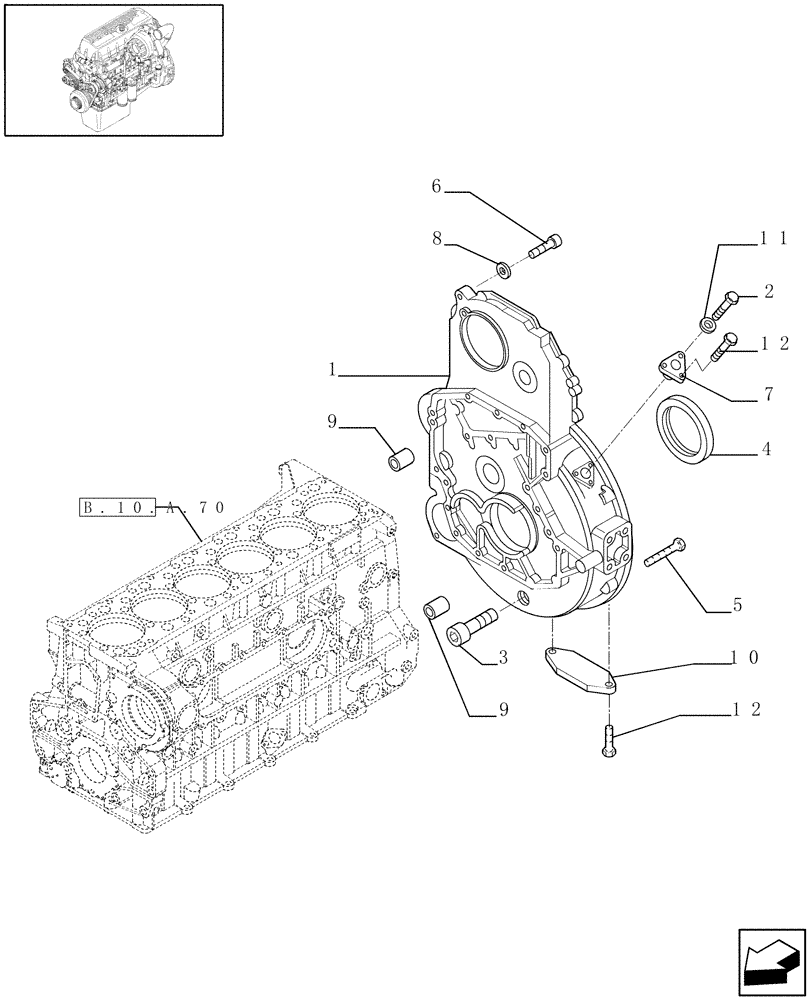

Запчасти Case IH AFX8010 (B.10.A.50[1]) - FLYWHEEL CASE (500361137) B - Power Production

1

500310414

HOUSING

1шт.

2

61315661

BOLT

1шт.

3

16992911

PLUG

M52 x 2

1шт.

4

40102693

GASKET

1шт.

5

16677934

SCREW,M12 x 1.75 x 35mm

M12 x 1.75 x 35

4шт.

5

16593624

SCREW,M12 x 1.75 x 120mm

M12 x 1.75 x 120

1шт.

5

99475978

SCREW

2шт.

5

16588824

SCREW,M12 x 1.75 x 70mm

M12 x 1.75 x 70

2шт.

5

16593424

SCREW,M12 x 100mm

M12 x 100

10шт.

6

16675834

SCREW,M10 x 1.5 x 30mm

M10 x 30

2шт.

7

99472521

COVER

1шт.

8

98474305

SEALING WASHER

D = 10 x 17 x 2.3 mm

2шт.

9

10839810

DOWEL,12mm OD x 18mm L

2шт.

10

4851842

COVER

1шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

16597924

SCREW,M8 x 14mm

M8 x 14

4шт.
