(B.10.A[1]) - ENGINE BLOCK FRONT COVER (500308638)

Запчасти Case IH AFX8010 (B.10.A[1]) - ENGINE BLOCK FRONT COVER (500308638) B - Power Production

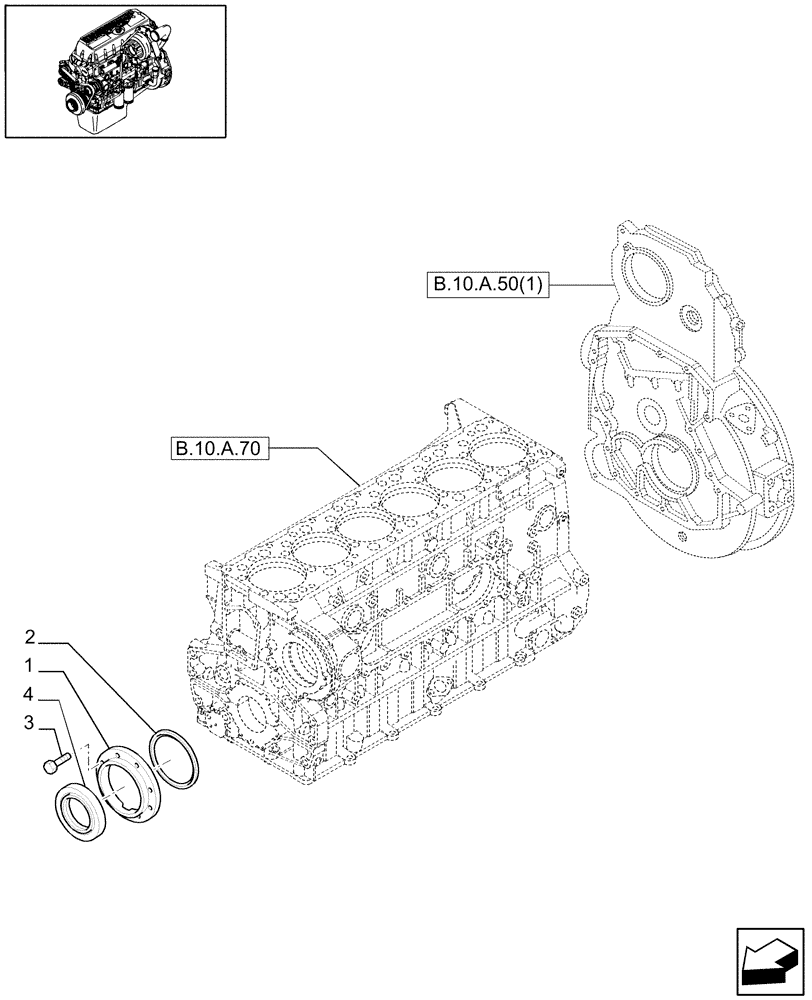

Схема запчастей Case IH AFX8010 - (B.10.A[1]) - ENGINE BLOCK FRONT COVER (500308638) B - Power Production
1
2
4
b.10.a.50(1)
b.10.a.70
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500304671

COVER

1шт.

2

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

3

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

M8 x 1.25 x 16

8шт.

3

16586225

BOLT,M8 x 16mm

Tier 3, Start Serial: HAJ106401

8шт.

4

40102683

GASKET

1шт.
