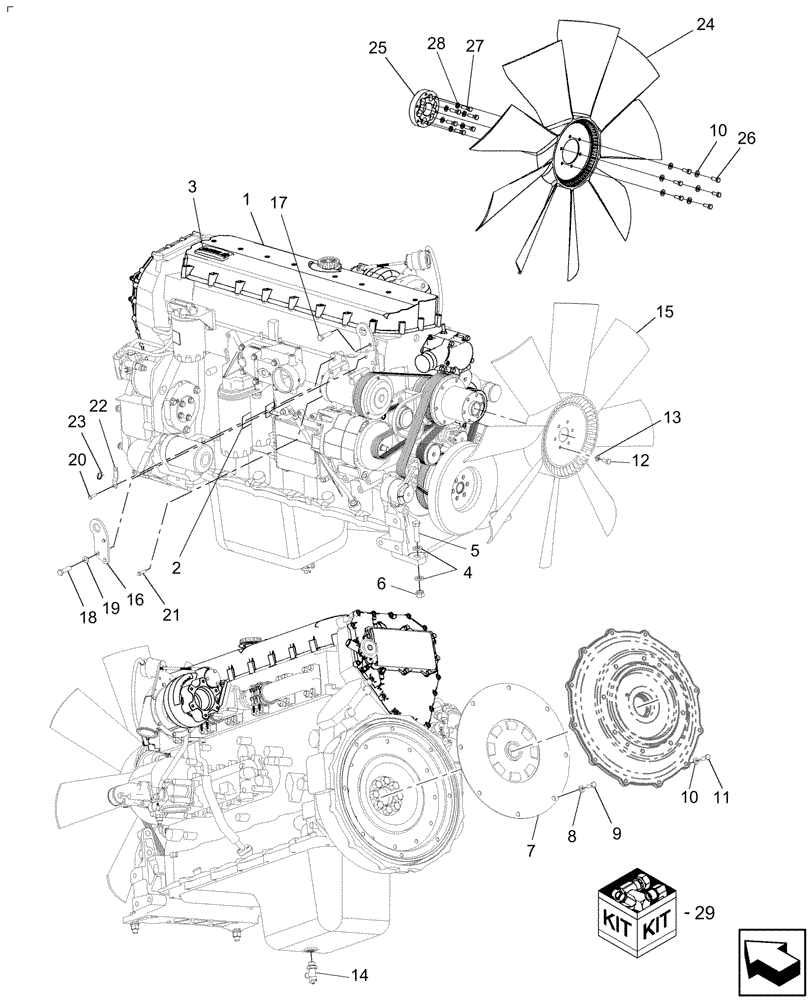

Запчасти Case IH AFX8010 (B.10[1]) - COMPLETE ENGINE B - Power Production

1

86975963

ENGINE

IVECO, F3A

1шт.

1

87281946

ENGINE

IVECO, F3A, Tier 2

1шт.

1

87281946ER

REMAN-REPLACEMENT EN

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, IVECO, F3A (3/03-9/06), Reman for New PN 86975963

1шт.

1

87281946EC

CORE-EPA ENGINE

Return Number

1шт.

1

87281946EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

87533746

ENGINE

IVECO, F3A, Tier 3 - Was 87283779, Start Serial: HAJ106401

1шт.

2

87405724

EMBLEM

CASE IH

3шт.

3

87802953

EMBLEM

1шт.

3

87802966

EMBLEM

1шт.

4

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

2шт.

5

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

2шт.

7

87536815

SPLINED COUPLING,466.67mm OD

Flex

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

13

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

14

87105048

DRAINCOCK/TAP SUPPLY

1шт.

15

86976471

FAN

8 Blades, 914.4mm OD

1шт.

15

87282911

FAN

Tier 3, 9 Blades, 914.4mm OD, Start Serial: HAJ106401

1шт.

16

504078127

LOAD HOOK

Lifting, Front

1шт.

16

500372844

LOAD HOOK

Lifting, Rear

1шт.

17

16677735

SCREW,M12 x 25mm

M12

1шт.

18

16588625

BOLT,Hex, M12 x 60mm, Cl 8.8

M12

2шт.

19

16687624

Washer

2шт.

20

16692324

BOLT

M10

2шт.

21

504080093

BOLT

M7x1.0x16mm

2шт.

22

504060889

RETAINER

Cable

1шт.

23

504023286

CLIP,200mm L

Plastic Collar

1шт.

24

84457703

FAN,9 Blades, 965.2mm OD

9 Blades, 965.2mm OD

1шт.

25

87641159

ADAPTER

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

28

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

29

84181355

SERVICE KIT

Kit, Single Plane Upgrade, See Fig. B.10[3]; Includes: Ref.s 10, & 24 Thru 29, Plus Those Components Found On Other Figures, As Indicated

1шт.
