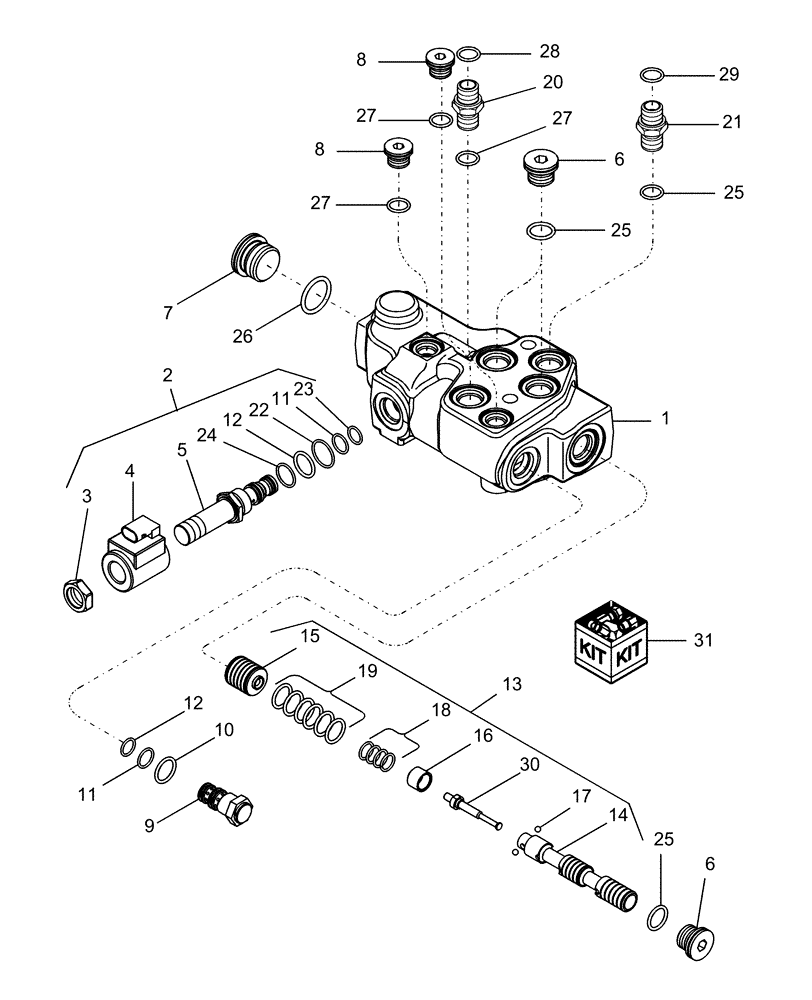

Запчасти Case IH AFX8010 (C.10.B.42[12]) - VALVE, HYDRAULIC A - Distribution Systems

1

86981234

HYDRAULIC VALVE

PTO Clutch Control

1шт.

2

239552A2

SOLENOID VALVE

Assembly PWM Solenoid, Includes: Ref. 3, 4, 5, 11, 12, 22-24

1шт.

3

304836A1

NUT

Retainer

1шт.

4

304834A1

SOLENOID

1шт.

5

304831A1

SPOOL

Cartridge

1шт.

6

221578A1

PLUG,M18 x 1.5 ORB

Incl. Ref. 25

3шт.

7

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 26

1шт.

8

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. Ref. 27

3шт.

9

177120A1

PLUG

Solenoid Valve, 2 GPM

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

2шт.

12

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

13

86981236

SPOOL

Assembly, Includes: Ref. 14-19, 30

1шт.

14

86981237

SPOOL

Modulation

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Modulator Assembly

1шт.

16

NSS

NOT SOLD SEPARAT

Sleeve Retaining

1шт.

17

511-1040

BALL,4mm Dia

GR 28 Chrome, Aly Stl

2шт.

18

NSS

NOT SOLD SEPARAT

Spring Light Modulation

1шт.

19

NSS

NOT SOLD SEPARAT

Spring Preload

1шт.

20

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 27, 28

1шт.

21

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 25, 29

1шт.

22

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

23

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

24

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

5шт.

26

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

Pin

1шт.

31

308245A1

SEAL KIT

Includes (1) each of Ref. 11, 12, 22, 23, 24

1шт.
