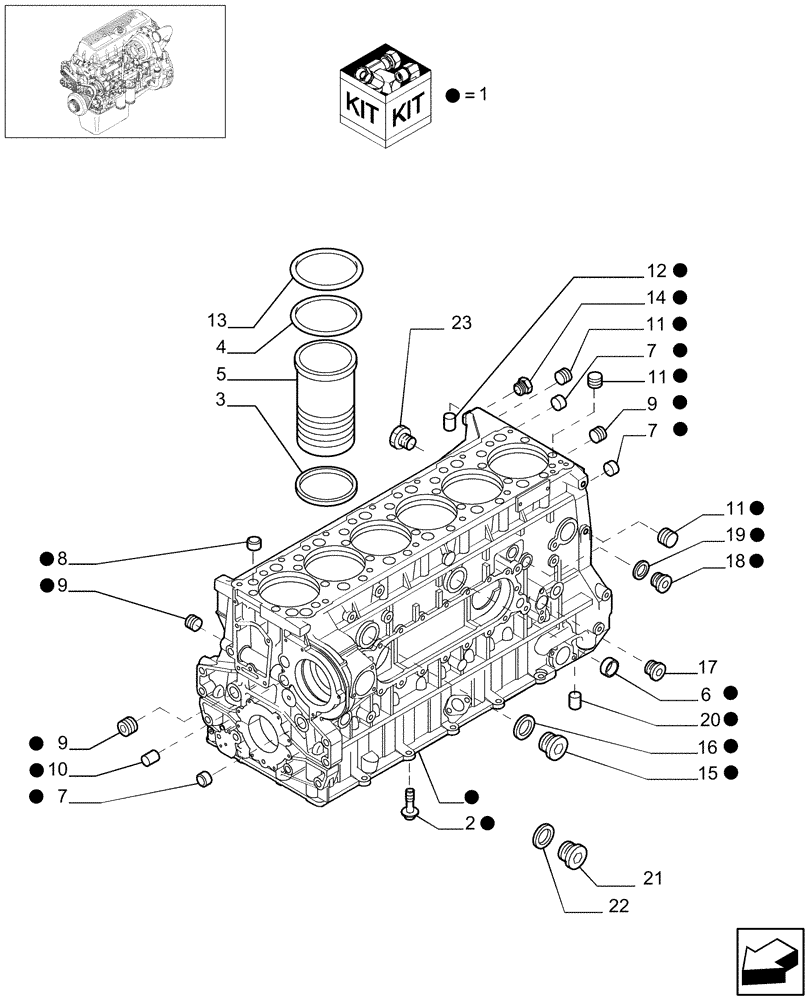

Запчасти Case IH 9010 (10.001.04[03]) - CYLINDER BLOCK & RELATED PARTS - 9010 (10) - ENGINE

1

504265913

CYLINDER BLOCK

1шт.

2

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

2

99432869

SCREW

25шт.

2

99433863

SCREW

1шт.

3

99448193

SHIM,0.08mm Thk

6шт.

3

99448192

SHIM,0.10mm Thk

6шт.

3

99448190

SHIM,0.12mm Thk

6шт.

3

500378983

SHIM,0.14mm Thk

6шт.

4

99455400

SEALING RING

SEALRING

6шт.

5

500337911

LINER, ENGINE CYLIND

STD

6шт.

6

16991370

PLUG

D = 45 mm

2шт.

7

16990870

PLUG

D = 28 mm

3шт.

8

16990670

PLUG,Lock, 22mm Dia

D = 22 mm

6шт.

9

500356932

PLUG

12 mm

3шт.

10

504120669

PLUG

1шт.

11

504051238

PLUG,Threaded, 3/8" Dia

3шт.

12

500368916

DOWEL

1шт.

13

99455401

SEALING RING

SEALRING

12шт.

14

99433597

SCREW

3шт.

15

16992515

PLUG

1шт.

16

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

17

504051237

PLUG

1/4"

1шт.

18

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

3шт.

19

99489019

SEALING WASHER

D = 16 x 24 x 1.5 mm

3шт.

20

99467554

DOWEL

D = 14 mm

4шт.

21

16887515

PLUG

1шт.

22

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

23

504138062

PLUG

2шт.
