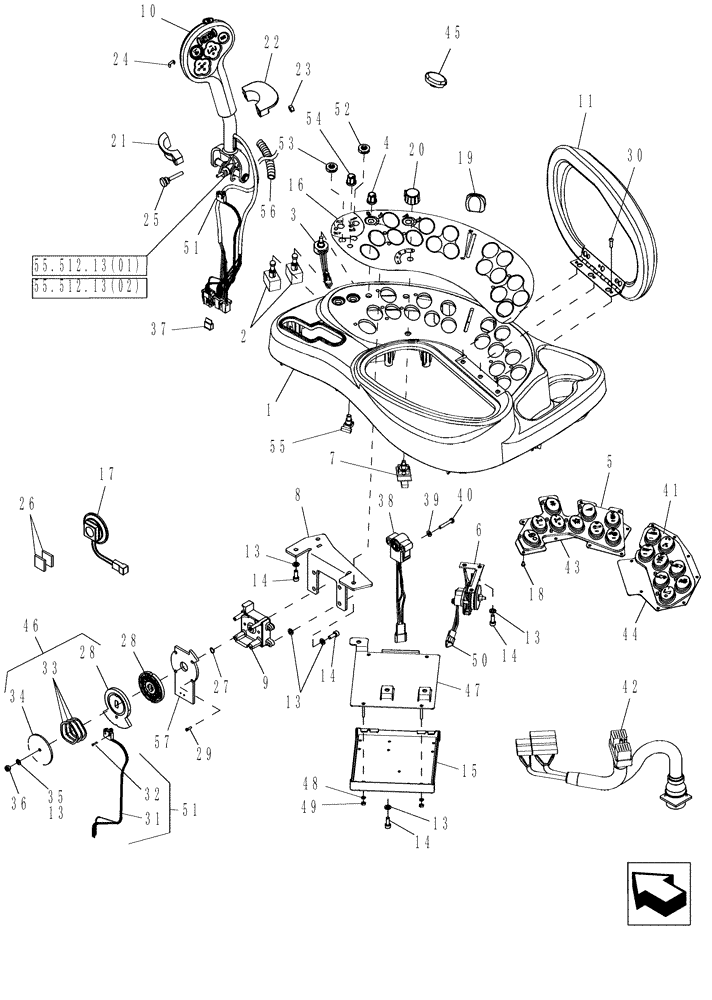

Запчасти Case IH 9010 (90.160.02[02]) - CONSOLE AND CONTROLS, R.H. **REMOVED, DUPLICATE TO 90.160.02(01)** (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87483994

CONSOLE

Complete console top tray

1шт.

1

87393154

CONSOLE

1шт.

2

86997464

SWITCH

2шт.

3

86997465

POTENTIOMETER

1шт.

4

118780A1

KNOB

Console Control

1шт.

5

87106744

RUBBER PAD

1шт.

6

86995126

THROTTLE

Control

1шт.

7

86525096

SWITCH ASSY

Gear Shift

1шт.

8

NSS

NOT SOLD SEPARAT

Bracket

1шт.

9

87109134

BASE

1шт.

10

87596219

JOYSTICK

With Edge Guidance / Autopilot Steering

1шт.

11

86995956

ARMREST

& Hinge

1шт.

11

87718946

HINGE

Only

1шт.

12

87109133

PLATE

Stop, Friction

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

18шт.

14

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

13шт.

15

87521010

MODULE

1шт.

16

87376151

DECAL

1шт.

17

86998255

SPEAKER

1шт.

18

86977872

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/4"

17шт.

19

87105681

KNOB

EH Control Lever

1шт.

20

86622310

KNOB

1шт.

21

86997341

SUPPORT

L.H.

1шт.

22

86997342

SUPPORT

R.H.

1шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

24

86618564

CLIP

1шт.

25

86618563

KNOB

1шт.

26

PL

PROCURE LOCALLY

Adhesive, Dual Lock

2шт.

27

87107953

WAVE WASHER

Wave

1шт.

28

NSS

NOT SOLD SEPARAT

Cam

1шт.

30

340-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

3шт.

29

87107955

HEX SOC SCREW,Torx, #4 - 40 x 3/8", Patch

Cap, Socket Hd, #4-40 x 3/8"

4шт.

31

87107957

SWITCH

Neutral

1шт.

32

87107958

SCREW,Pan, #2 - 56 x 0.50mm

Pan Hd, #2-56 x .50

2шт.

33

86975889

WAVE WASHER

Wave

3шт.

34

87107960

PLATE

Stop

1шт.

35

87107961

WASHER

Flat, #10

1шт.

36

87107962

LOCK NUT

1шт.

37

87107963

LOCK

1шт.

38

87045052

POTENTIOMETER,5 VDC

Includes Ref 29

1шт.

39

87108107

WASHER

#10

2шт.

40

87282487

SCREW,Pozidrive, Pan HD, #10 - 32 x 1-1/4"

Torx

2шт.

41

87282484

RUBBER PAD

Required on all Dual Speed Rear Axles

1шт.

42

87376152

WIRE HARNESS

Console, R.H.

1шт.

43

87107589

KEYBOARD

Pad, Front, RH Console; Includes Refs 5 & 43

1шт.

44

87282485

SWITCH

Pad, Rear, RH Console; Includes Refs 41 & 44

1шт.

45

86997284

CAP

Cover

1шт.

46

87284702

KIT

Plates, Friction - Includes Refs 13, 28, 33, 34 & 36

1шт.

47

NSS

NOT SOLD SEPARAT

Bracket, RHM

1шт.

48

140024

LOCK WASHER,M4

4шт.

49

100012

NUT,M4 x 0.7, Cl 8

4шт.

50

87282573

KIT

1шт.

51

87282657

KIT

Neutral Switch with Wires, Includes Refs 31 & 32

1шт.

52

87327317

PLASTIC PLUG

1шт.

Touch Screen Display

1шт.

53

87327317

PLASTIC PLUG

1шт.

Touch Screen Display

1шт.

54

87570112

PLUG

1шт.

Touch Screen Display

1шт.

56

87582997

FOAM INSULATION

1шт.

57

87109133

PLATE

Friction Stop Plate

1шт.
