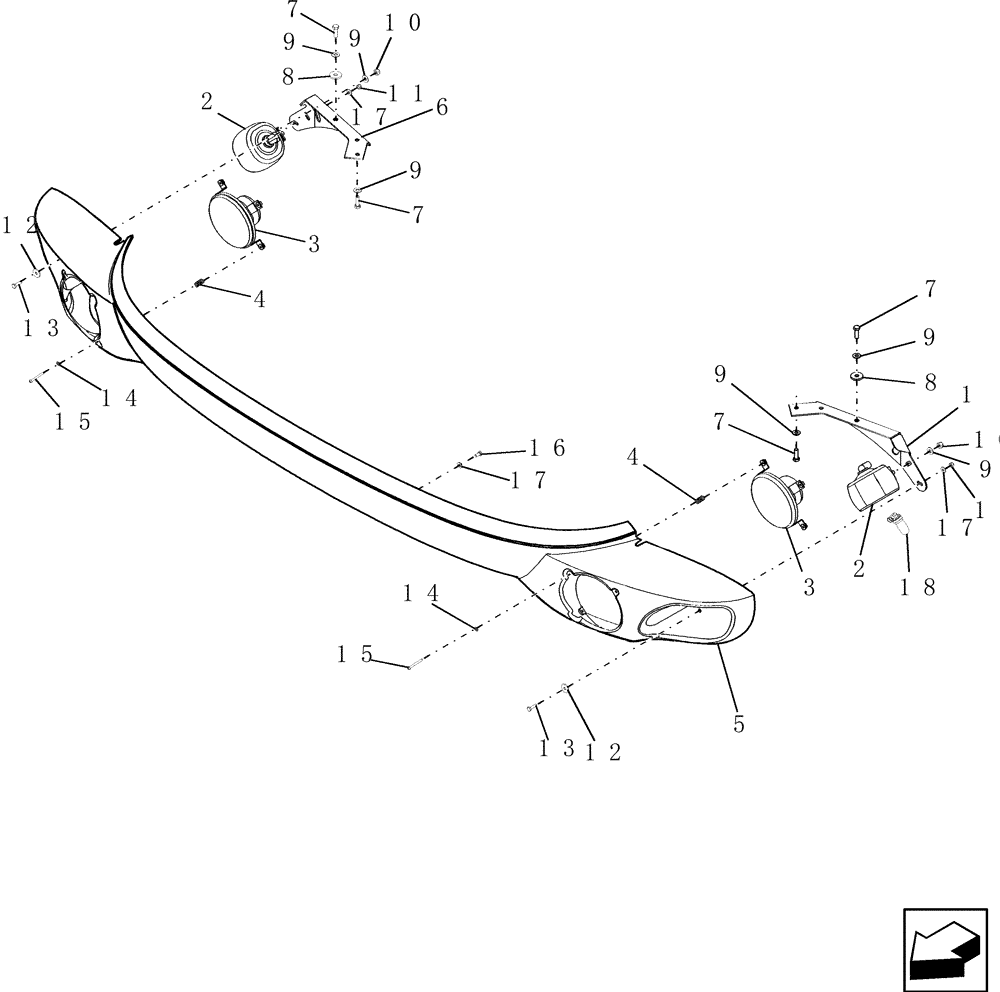

Запчасти Case IH 9010 (90.150.07[03]) - CAB SKIRT - EU (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87108085

SUPPORT

L.H.

1шт.

2

84067907

WORK LAMP,Halogen, 12V, 37.5W, Clear

Includes Ref 19

2шт.

3

84067913

HEADLAMP,Halogen, 12V, 60W, Clear

2шт.

UK Only

1шт.

3

84067914

HEADLAMP,Halogen, 12V, 60W, Clear

2шт.

4

84429835

SPRING

6шт.

5

87105504

PANEL

Lower, Front

1шт.

6

87108087

BRACKET

R.H.

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

8

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

10

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

140014

WASHER,M5 x 10mm OD x 1mm Thk

6шт.

15

84429834

SELF-TAP SCREW,Round HD, M4 x 45mm, SST

6шт.

16

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

18

9847313

BULB,#894, 12V, 37.5W

Halogen

2шт.
