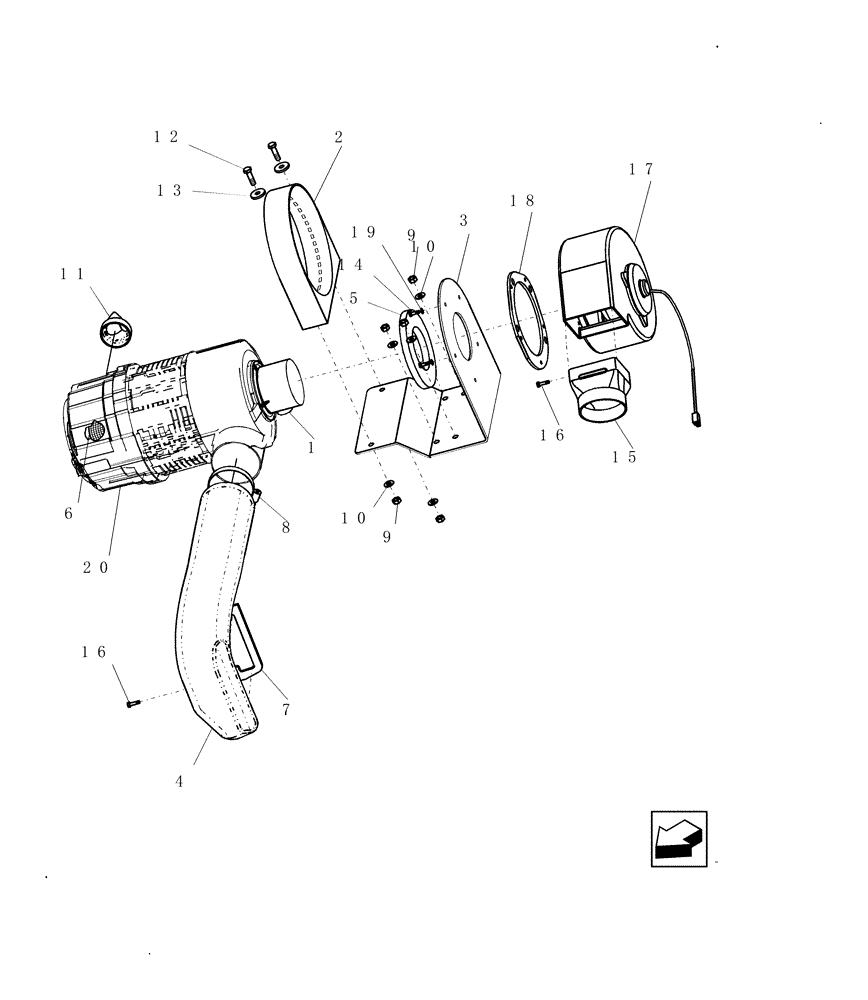

Запчасти Case IH 9010 (90.150.05) - AIR FILTER & BLOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84334657

AIR CLEANER

Includes: Ref 6

1шт.

2

84057675

CLAMP BRACKET

1шт.

3

87280316

BRACKET

Mounting, Blower Assy

1шт.

4

87108999

DUCT

Air Cleaner

1шт.

5

87107233

GASKET,12.7mm Thk

1шт.

6

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

7

87109185

GASKET

1шт.

8

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

6шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

11

9809800

DUST VALVE,1.93" ID x 2.24" OD

1шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

14

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

5шт.

15

87107256

ADAPTER

1шт.

16

86639138

SELF-TAP SCREW,HWH, M4.8 x 1.6 x 13mm

2шт.

17

87107380

BLOWER

1шт.

18

87107381

GASKET

, Serial Range: Blower-Bracket

1шт.

19

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

5шт.

20

47132327

COVER

1шт.
