Запчасти Case IH 9010 (90.120.04) - SEAT COMPONENTS, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

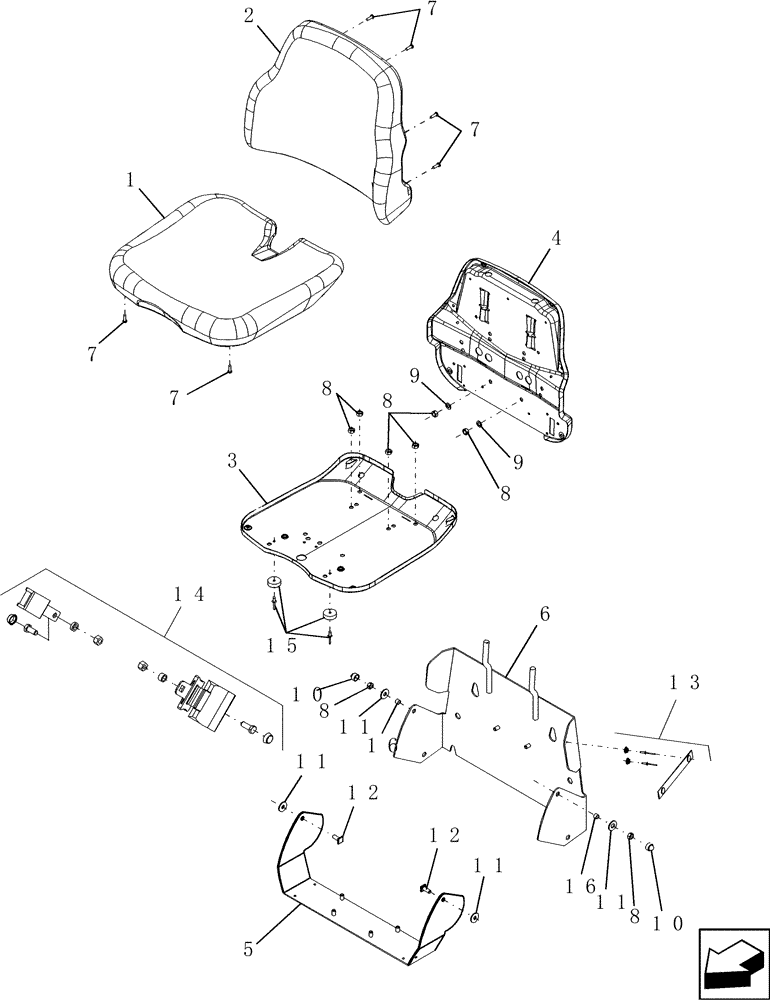

Схема запчастей Case IH 9010 - (90.120.04) - SEAT COMPONENTS, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
12
6
11
11
9
8
8
16
10
2
15
9
4
7
8
1
8
7
10
7
5
7
16
14
11
13
12
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87280203

SEAT BACK

CUSHION

1шт.

2

87280202

SEAT BACK

CUSHION, Backrest

1шт.

3

87280201

PAN

Seat

1шт.

4

NSS

NOT SOLD SEPARAT

PAN, Backrest

1шт.

5

87280199

SUPPORT

Pan, Seat

1шт.

6

87280198

SUPPORT

Pan, Backrest

1шт.

7

85819815

SCREW,M5 x 16mm

M5 x 16

6шт.

8

47124497

NUT,M8

8шт.

9

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

10

87280197

COVER

2шт.

11

87280196

WASHER

4шт.

12

87280195

SCREW

2шт.

13

87280205

BRACKET

1шт.

14

84081010

SEAT BELT

1шт.

15

87280194

BUMPER

1шт.

16

87280193

TUBE

Spacer, Instructional Seat

2шт.
