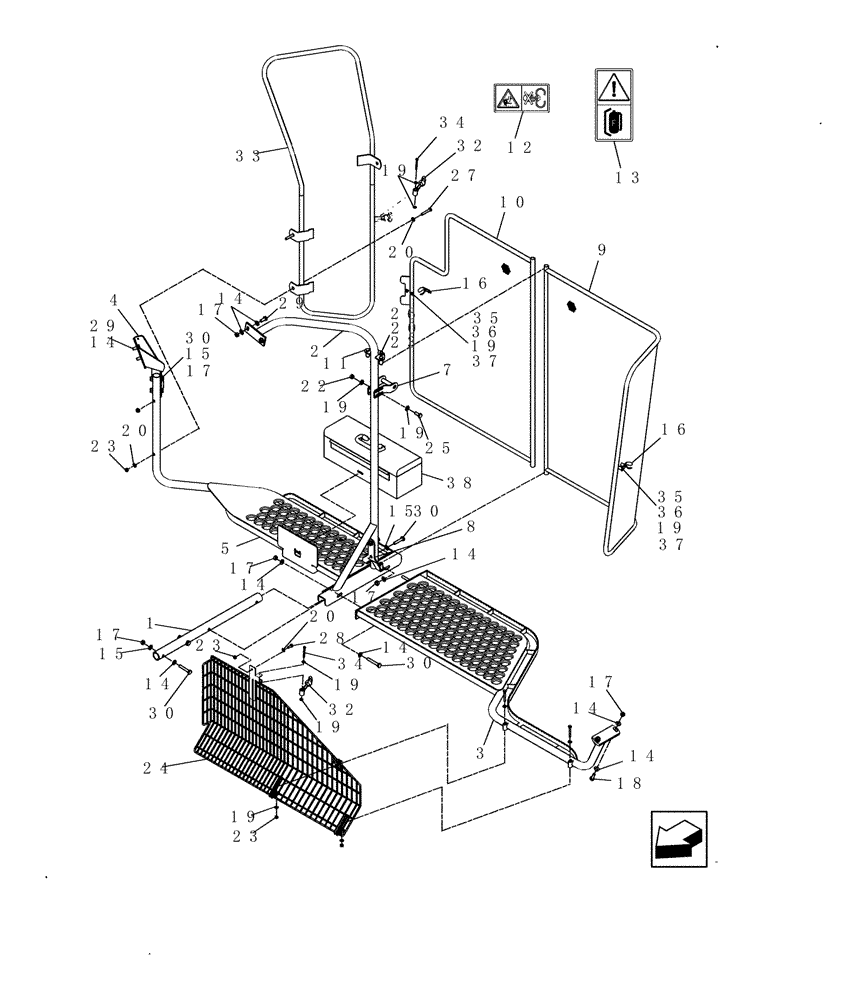

Запчасти Case IH 9010 (90.118.22[02]) - SHIELDS, LOWER, L.H. - 9010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86976334

TUBE,39.69 mm OD x 650 mm L

LH Lower Shields

1шт.

2

86998284

TUBE

LH Lower Shields

1шт.

3

87283370

PLATFORM

1шт.

4

86623051

SUPPORT

1шт.

5

87281169

PLATFORM

1шт.

7

87282197

BRACKET

1шт.

8

86638375

BRACKET

Supporting, Includes: Refs 30, 14, 15, and 17

1шт.

9

87510550

SHIELD

Includes Refs 12 & 13

1шт.

10

87566545

SHIELD

Includes Ref 12

1шт.

11

86998278

BRACKET

1шт.

12

84011345

DECAL

Safety Chain Entangle

2шт.

13

84432906

DECAL

Caution, Fire Extinguisher

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

379401

WASHER,11mm ID x 30mm OD

6шт.

16

86975624

LATCH HOOK

2шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

22

9706755

NUT,M6, Cl 8

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

1шт.

24

87283331

SHIELD

1шт.

25

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

27

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

29

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

31

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

32

86975220

LATCH HOOK

2шт.

33

87107459

SHIELD

1шт.

34

87400

COTTER PIN,3/16" x 2"

2шт.

35

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

3шт.

36

1277909C1

SPACER

2шт.

37

86508813

NUT,M5, Cl 8

4шт.

38

87280324

TOOL BOX

1шт.
