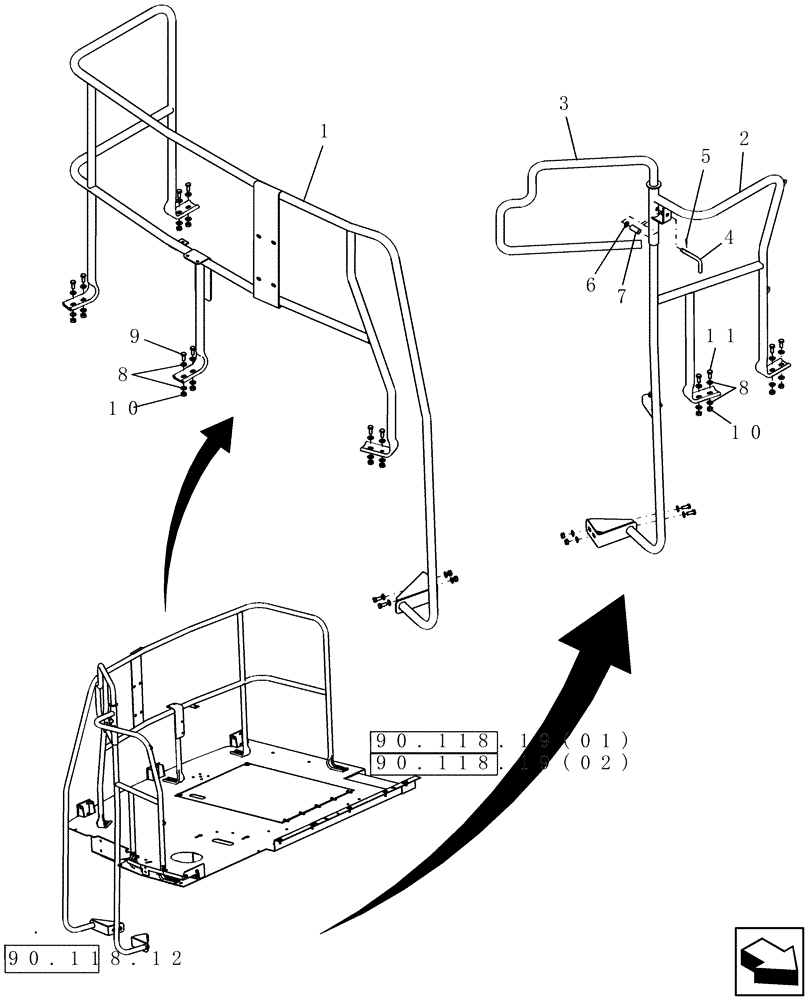

Запчасти Case IH 9010 (90.118.21[02]) - REAR DECK HANDRAILS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87644023

HANDRAIL

1шт.

2

87662410

HANDRAIL

1шт.

3

87662404

BRACKET

1шт.

4

87475014

HANDLE

1шт.

5

300865

LOCK PIN,M3 x 20mm OAL, Slotted

1шт.

6

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1шт.

7

226829

SPRING,Compression, 19.05mm OD x 77.72mm OD

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

32шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

14шт.

10

100016

NUT,M10 x 1.5, Cl 8

16шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.
