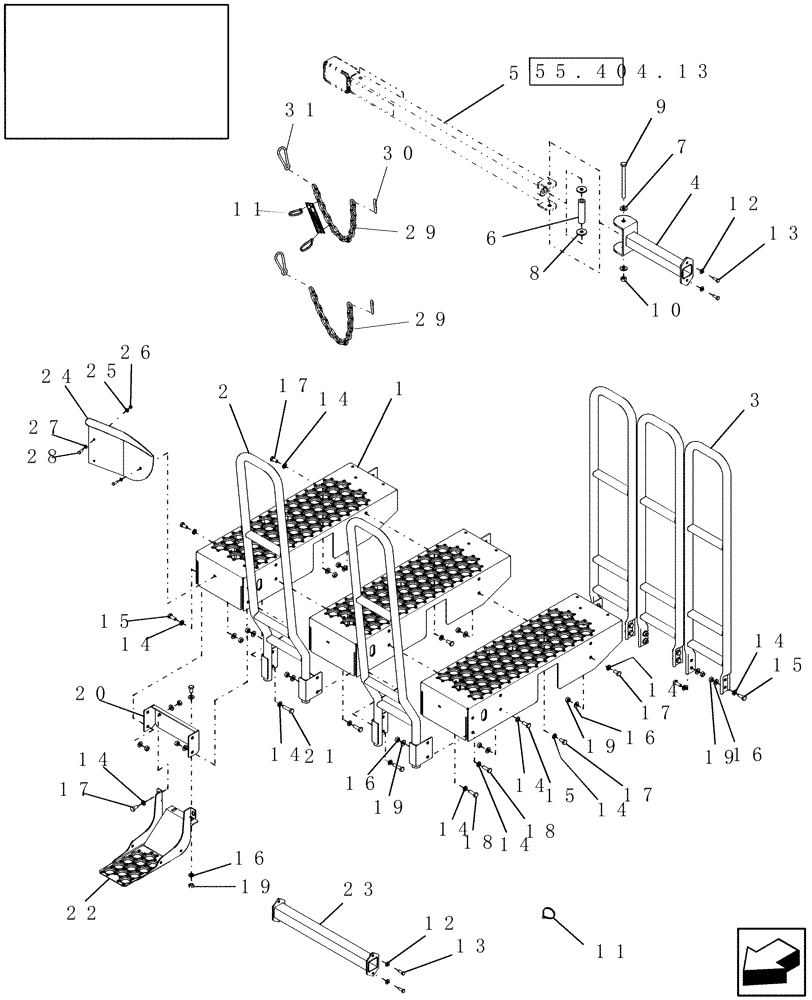

Запчасти Case IH 9010 (90.118.09[02]) - PLATFORM EXTENSIONS - 9010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

87530965

DIA KIT, HARVESTER

250mm Platform Extension

1шт.

87530966

DIA KIT, HARVESTER

500mm Platform Extensions

1шт.

1

87548625

PLATFORM ASSY.

Red

1шт.

2

87395729

HANDRAIL

Dark Gray

1шт.

3

87280493

HANDRAIL

Dark Gray

1шт.

4

87109737

SUPPORT

1шт.

5

87283303

WARNING LIGHT

Used W/250mm Extension

1шт.

5

87283302

WARNING LIGHT

Used W/500mm Extensions

1шт.

6

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

8

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

9

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

19

100016

NUT,M10 x 1.5, Cl 8

1шт.

20

87548626

SUPPORT ASSY.

L.H. Step

1шт.

21

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

22

87281023

STEP

Access

1шт.

23

87281175

EXTENSION

500mm

1шт.

24

87548733

COVER ASSY

Chin Guard

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

27

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

28

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

29

87392184

CHAIN,458.47mm L

2шт.

30

87107072

CHAIN LINK,44.299mm Pitch

2шт.

31

87385180

SPRING CLIP

2шт.
