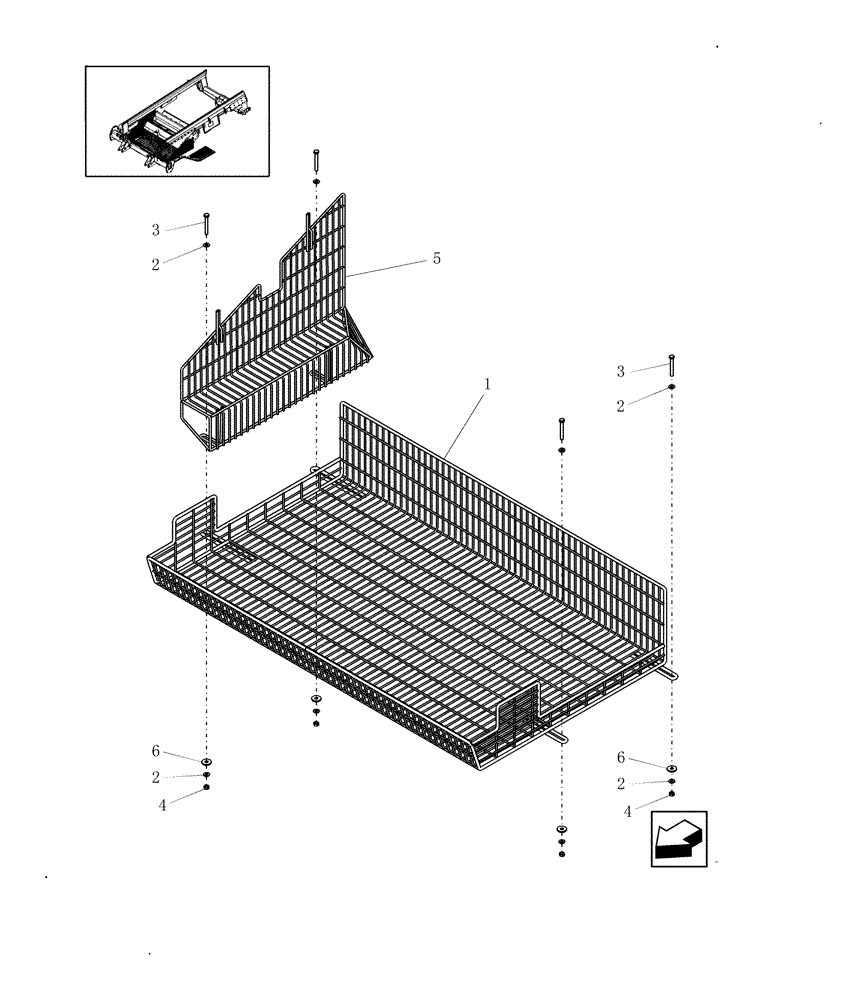

Запчасти Case IH 9010 (90.114.07[02]) - SHIELD, FAN BOTTOM - 9010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87569781

SPLASH SHIELD

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

3

86639028

BOLT,Hex, M8 x 65mm, Cl 8.8, Full Thd

4шт.

4

9706690

NUT,M8 x 1.25, Cl 8

4шт.

5

87562324

SPLASH SHIELD

1шт.

6

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.
