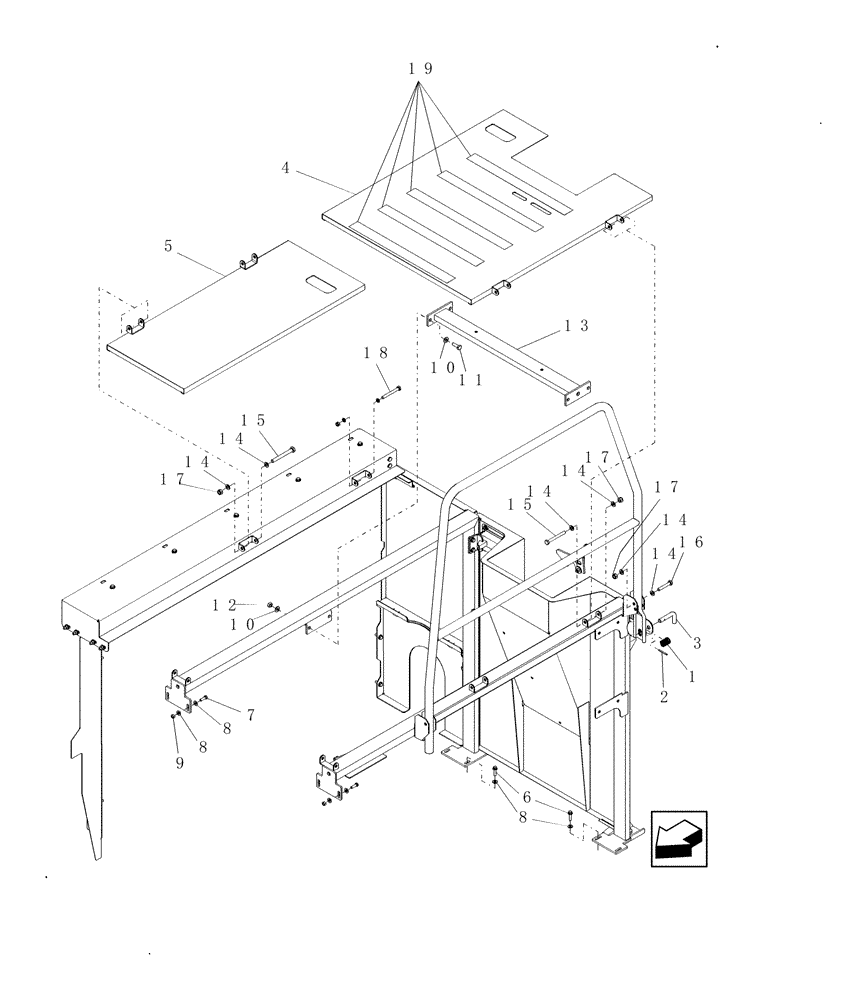

Запчасти Case IH 9010 (90.102.03[05]) - GUARDS, ENGINE - PRIOR TO PIN HAJ202001 - 8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86611329

SPRING

1шт.

2

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

3

86611330

PIN,16.56mm OD

Jack

1шт.

4

87553588

COVER ASSY

L.H., L/Strips

1шт.

5

87553592

COVER ASSY

Top

1шт.

6

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

87553571

SUPPORT ASSY.

1шт.

14

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

12шт.

15

120074

BOLT,Hex, M10 x 90, 8.8

4шт.

16

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

18

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

19

401502

ANTI-SKID STRIP

1шт.
