Запчасти Case IH 9010 (90.100.24[01]) - TUBE SUPPORT, R.H. REAR UPPER PANEL HINGE - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

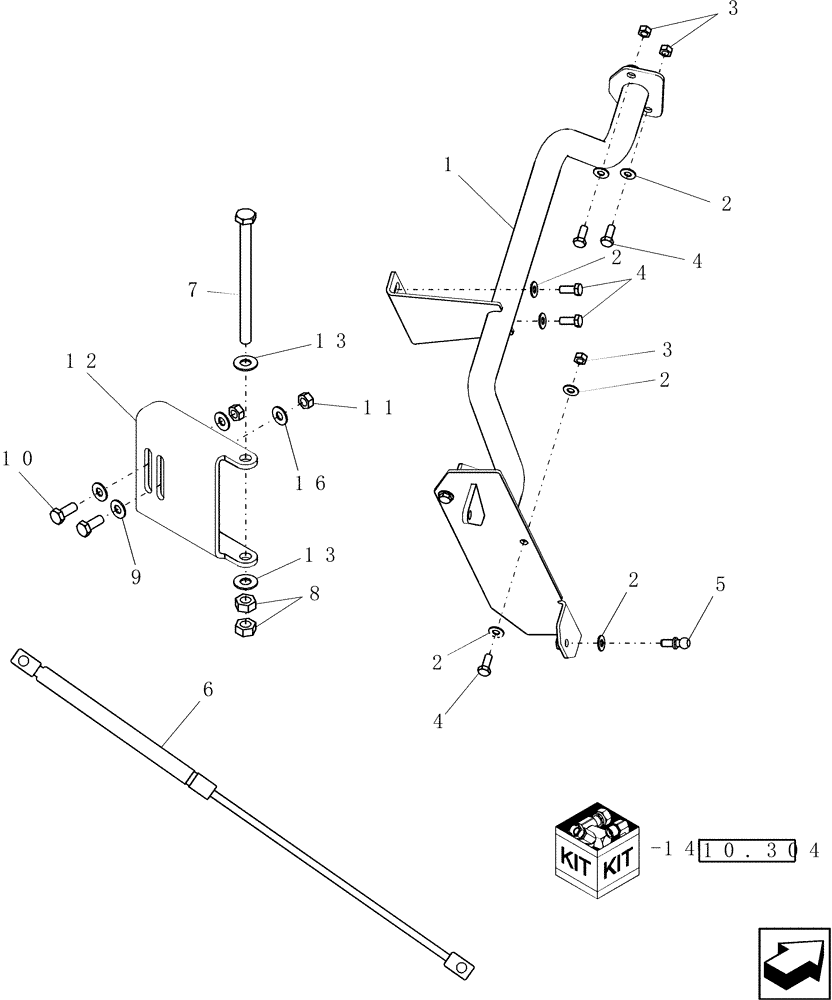

Схема запчастей Case IH 9010 - (90.100.24[01]) - TUBE SUPPORT, R.H. REAR UPPER PANEL HINGE - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
16
8
11
2
2
-
2
12
1
3
4
14
10.304.09
9
7
3
4
13
4
2
5
13
10
2

Артикул

Название

Примечание

Количество

1

87108095

SUPPORT

1шт.

8010 Prior To PIN HAJ202001

1шт.

1

87108097

SUPPORT

1шт.

8010 PIN HAJ202001 & AFTER - 7010 All

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

3

9706690

NUT,M8 x 1.25, Cl 8

4шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

9706807

BALL STUD,M8 x 1.25

BALL PIN

1шт.

6

87108531

GAS STRUT

900N

1шт.

7

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

87280546

BRACKET

1шт.

8010 Prior To PIN HAJ202001

1шт.

12

87280544

BRACKET

1шт.

8010 PIN HAJ202001 & AFTER - 7010 All

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

84181355

SERVICE KIT

Single Plane Upgrade

1шт.

Выбрано товаров: 20
