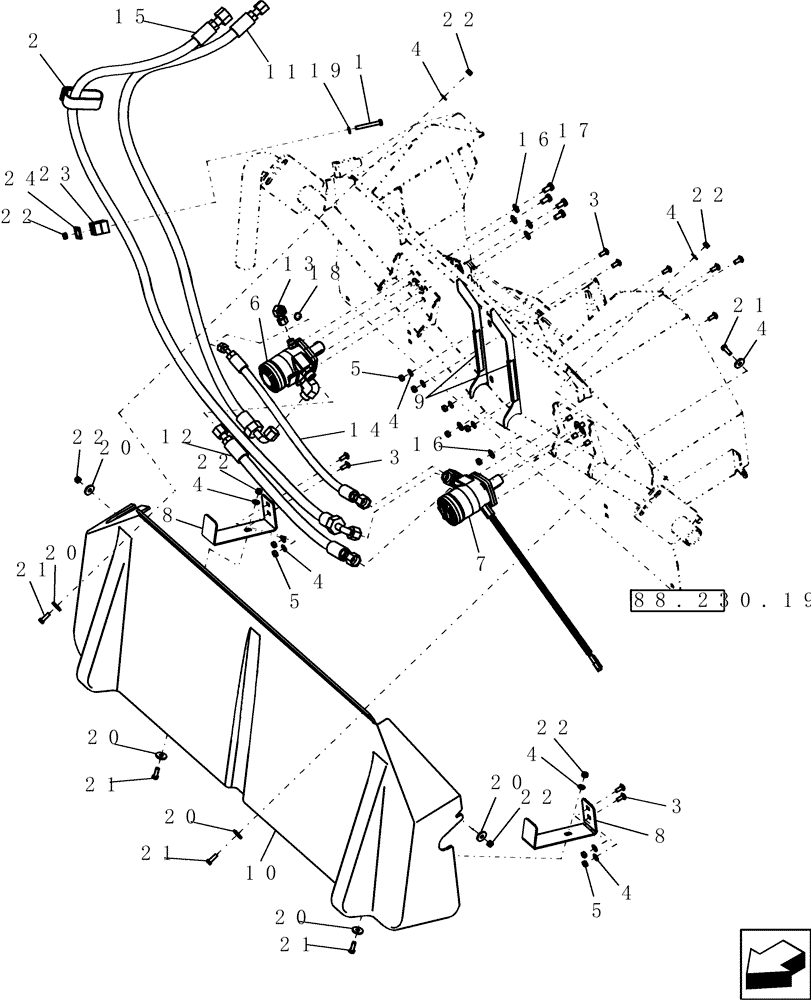

Запчасти Case IH 9010 (88.230.15) - SPREADER, UPPER (88) - ACCESSORIES

1

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

2

87108048

SECURING STRAP

1шт.

3

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

10шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

5

9706690

NUT,M8 x 1.25, Cl 8

10шт.

6

87519075

HYDRAULIC MOTOR,74CC

W/Drain

1шт.

87519075R

REMAN-HYD MOTOR

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08) both AXIAL-FLOW COMBINE

1шт.

87519075C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

87519076

HYDRAULIC MOTOR,74CC

W/Senso

1шт.

87519076R

REMAN-HYD MOTOR

7010 (2/07-9/08), 8010 PIN HAJ200001 TRHU HAJ204999 (9/06-9/08)

1шт.

87519076C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

87108935

BRACKET

Cover Mounting

2шт.

9

87000945

PROTECTION STRIP

2шт.

10

87510734

COVER

1шт.

11

87105924

FLEXIBLE HOSE,15.88mm ID x 1780mm L

Spreader Motor, Pressure

1шт.

12

87105926

FLEXIBLE HOSE

Jumper, Spreader, Serial Range: Motor-Motor

1шт.

13

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

14

87282287

FLEXIBLE HOSE

Spreader Motor Drain

1шт.

15

87282286

FLEXIBLE HOSE,16mm ID x 2200mm L

Spreader Motor Return

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

20

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

23

87000924

CLAMP

1шт.

24

87000230

PLATE

Hose Clamp

1шт.
