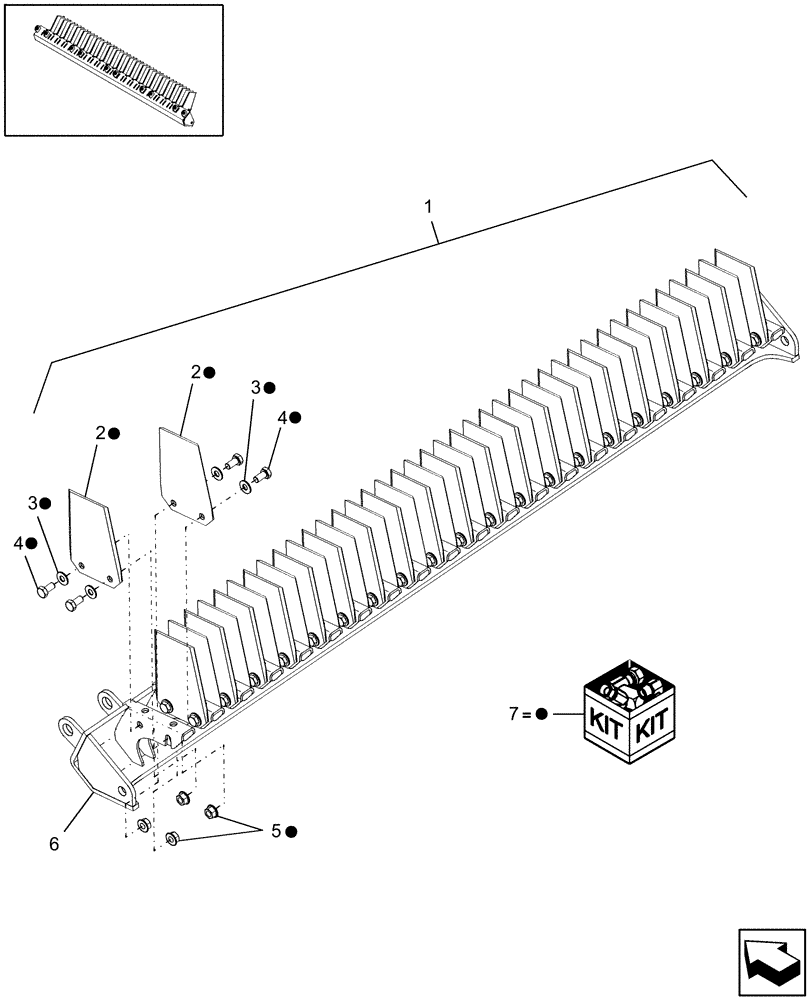

Запчасти Case IH 9010 (88.230.11) - KNIFE FRAME, FIXED; FOR USE W/3X3 INTEGRATED CHOPPER - 7010/8010 (88) - ACCESSORIES

1

87746842

KNIFE ASSY

Bar (20 Knives); Includes: Refs 2 Thru 6, As Indicated

1шт.

1

87746844

BAR ASSY.

Knife (41 Knives); Includes: Refs 2 Thru 6, As Indicated

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

82шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

82шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

82шт.

6

NSS

NOT SOLD SEPARAT

Bar, Knife

1шт.

7

87751465

SERVICE KIT

Includes: Refs 2 (2), 3 (4), 4 (4), & 5 (4)

1шт.
